11 ACP-4010 User Manual
Chapter 2 System Setup
2.6 Installing Disk Drives
The APC-4010 supports two 5.25” disk drives, one 3.5” FDD, and one 3.5” internal
HDD. Please refer to the following instructions to install the disk drives.
To install the 3.5” HDD, FDD and the optical disk drive, please follow these steps for
installation and refer to Figure 2.7.
1. Release the two screws on top left of the HDD bracket and the four screws
on top of the disk drive bracket.
2. Insert the 3.5" HDD, FDD, or optical disk drive into the proper location in the
bracket and secure them with the screws provided.
3. Return the disk drive bracket and the HDD bracket with the disk drive in the
original position and fasten it with the screws.
4. Connect the suitable cables from the CPU card or the motherboard to the
3.5” HDD, the optical disk drive, or a FDD. Then plug the power connector
into each disk drive.

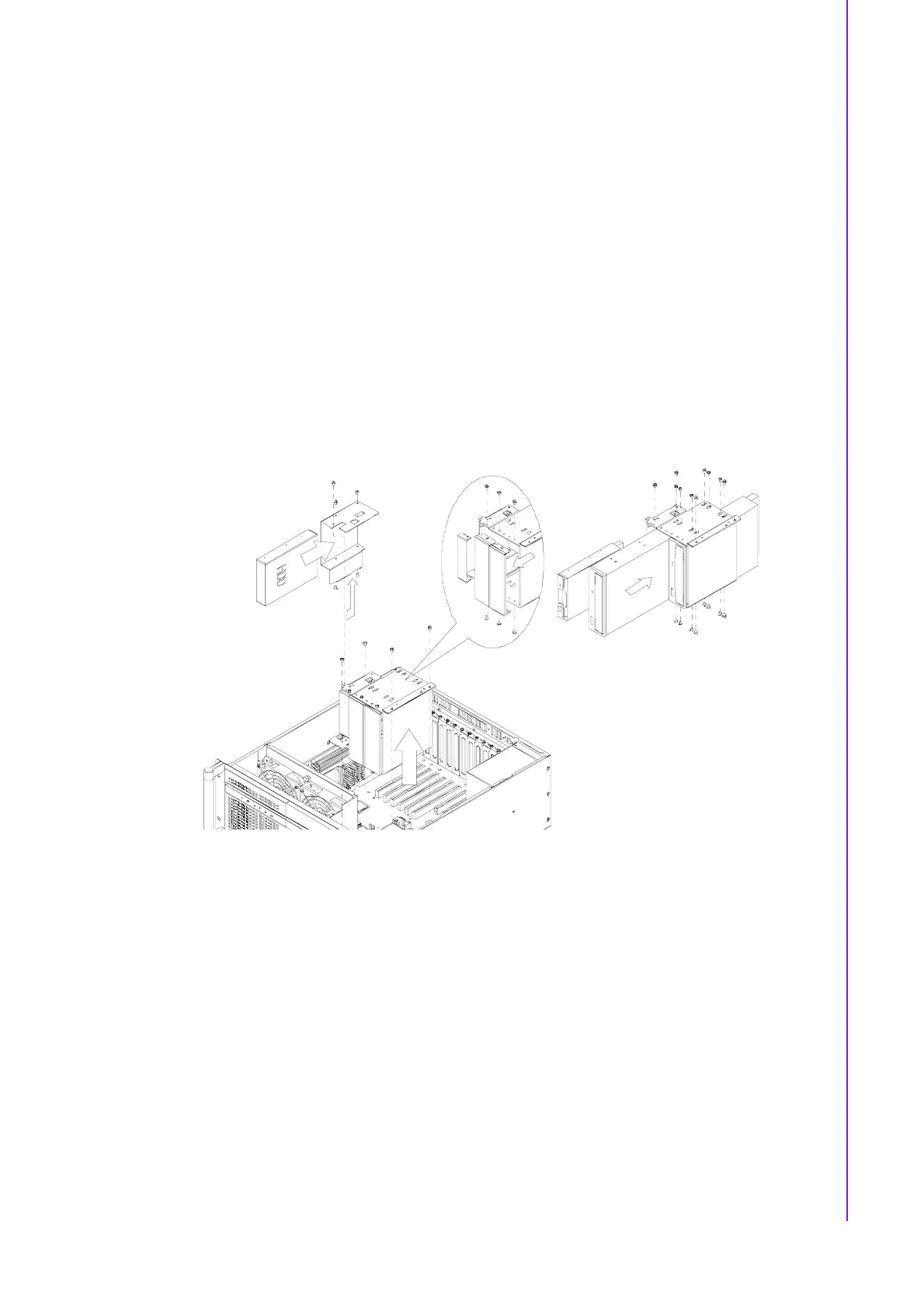

Figure 2.7: Installing 3.5” HDD, FDD or optical disk drive
