38Service Manual – SC901 24 - Electrical System
Device Labeling
All of the components within the diagram carry various labels intended to assist in identifying those items in
the actual machine, or to reference them to other drawings.
Device Numbers (Names):
Each device is given its own unique identier. The letter prex identies the type of device, such as “K” for
a relay, “L” for a solenoid, “M” for motor, and “A” for a control module; just to name a few. Then each device
within that class is given a unique number. For example, “K1” may be the main KSI relay. However, because
this particular relay serves a common function, it is also identied by a simple name too: “KSI” (Legacy for
Key Switch Input).
Device numbers and device names (when they exist) are synonymous, but device names are preferred
because they are easier to remember, so long as they are unique and descriptive.
Connector Contact Numbers:
All of the circuit lines going to any of the control modules will have
indicators for their wire color and the connector pin-out location.
When 2 colors are listed for a wire color, the rst color is the main
color and the second color is the color of a stripe on the wire.
For the connector identier example shown (J4-6), the rst part “J4”
represents the connector number, and the last part “6” represents the pin number within that connector.
This information, along with the “Connector Pinouts” on page 50 is used locate the physical wires on the
machine.
Navigation
In some cases it is necessary
to have references across
different areas of a drawing.
These references can point
across the drawing sheet,
or to different sheets in a
multi-sheet schematic. The
references are commonly
referred to as “Tags”. At a
minimum, tags typically
have a name or designation,
but they may also contain
coordinate pointers to their
counterpart.

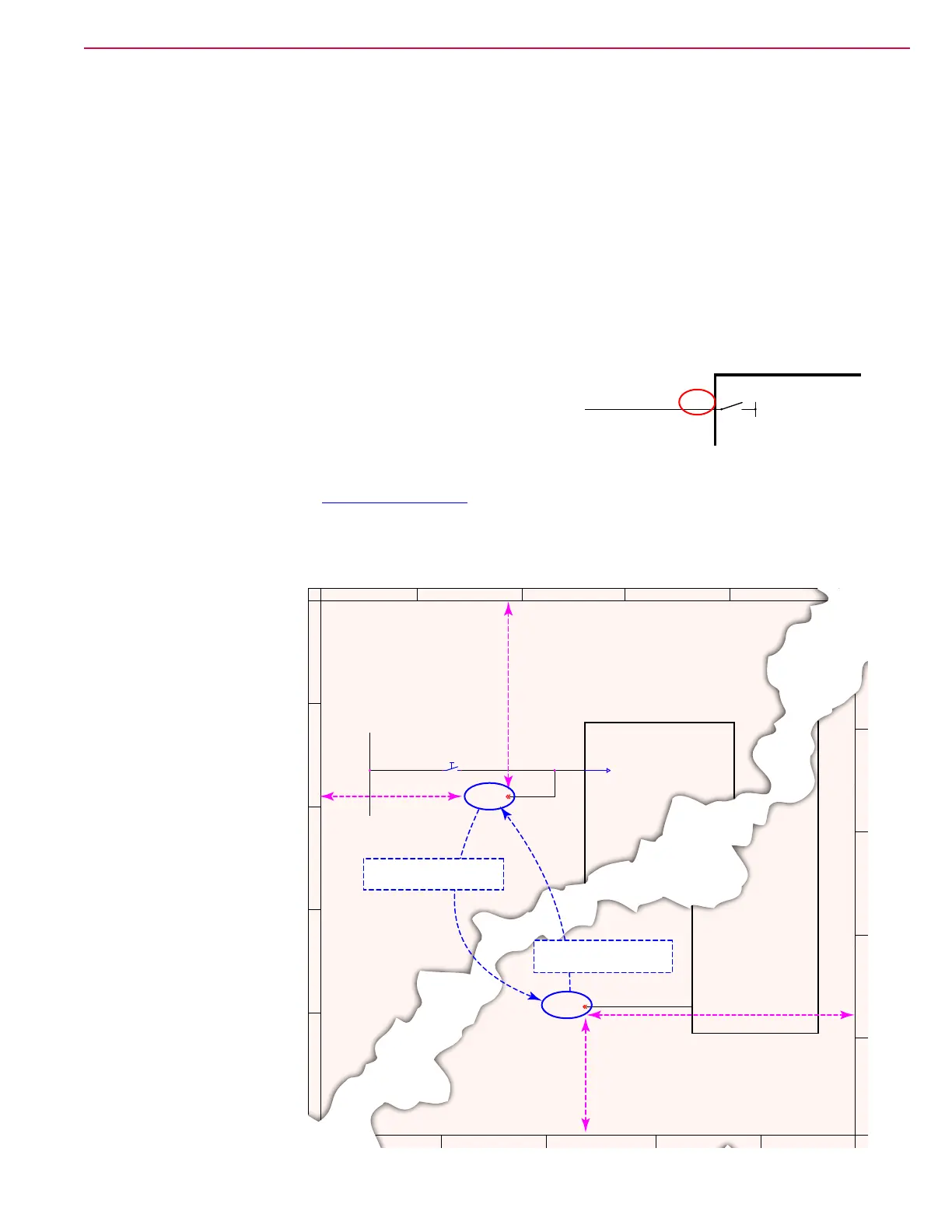

In the sample diagram to the
right, the output from the
seat switch needs to connect
to the main controller on
sheet #1 and also to the drive
controller on sheet #3. The
identifying name could be an
actual name, such as (Seat
Switch), or in this case, just
a letter designator (G). Both
ends of a tag will have the
same identier.
In addition to the identier,
the tag also contains
J4-6
Function
Name
ORN/GRN
B-
Controller Name
DC GFE
D EA B C
1
2
3
4
5
SHEET 1
SHEET 3
2
3
4
5
J1-12
GRN/BLU
GRN/BLUBLU/RED
(G) TO 3E4
S1
SW , SEAT
12
E2
MAIN CONTROL BOARD
INTERLOCK
E4
WHEEL-DRIVE
CONTROLLER
J4-9
GRN/BLU
(G) TO 1B2
Point Name = G to
Sheet 3 @ Coordinate E4
Point Name = G to
Sheet 1 @ Coordinate B2
