1/2021 A - 17 56091219 - Advance SC5000
ENGLISH - AINSTRUCTIONS FOR USE
INSTALL THE BRUSHES (CYLINDRICAL SYSTEM)
CAUTION!
Turn the machine OFF at the power switch, before changing the brushes, and before opening any access panels.
1 Make sure the Scrub Deck is in the RAISED position. Make sure the Power Switch (H) is off.
2 See Figure 2-3. Unlatch and swing open both Side Blade Assemblies (AA).
3 Unhook the Latch (AB) on top of the Idler Assemblies (AC) and remove.
4 Slide the brush into the housing, lift slightly, push and turn until the tabs on the drive hub seat into the notches in the brush. NOTE: The idler is designed with
a snug t into the brush to reduce vibration. Re-install the Idler Assemblies (AC) make sure the tabs on the idler are inside of the weldment (as shown in
inset of Figure 2-3). Secure with Latch (AB). Close and latch both the Blade Assemblies (AA).

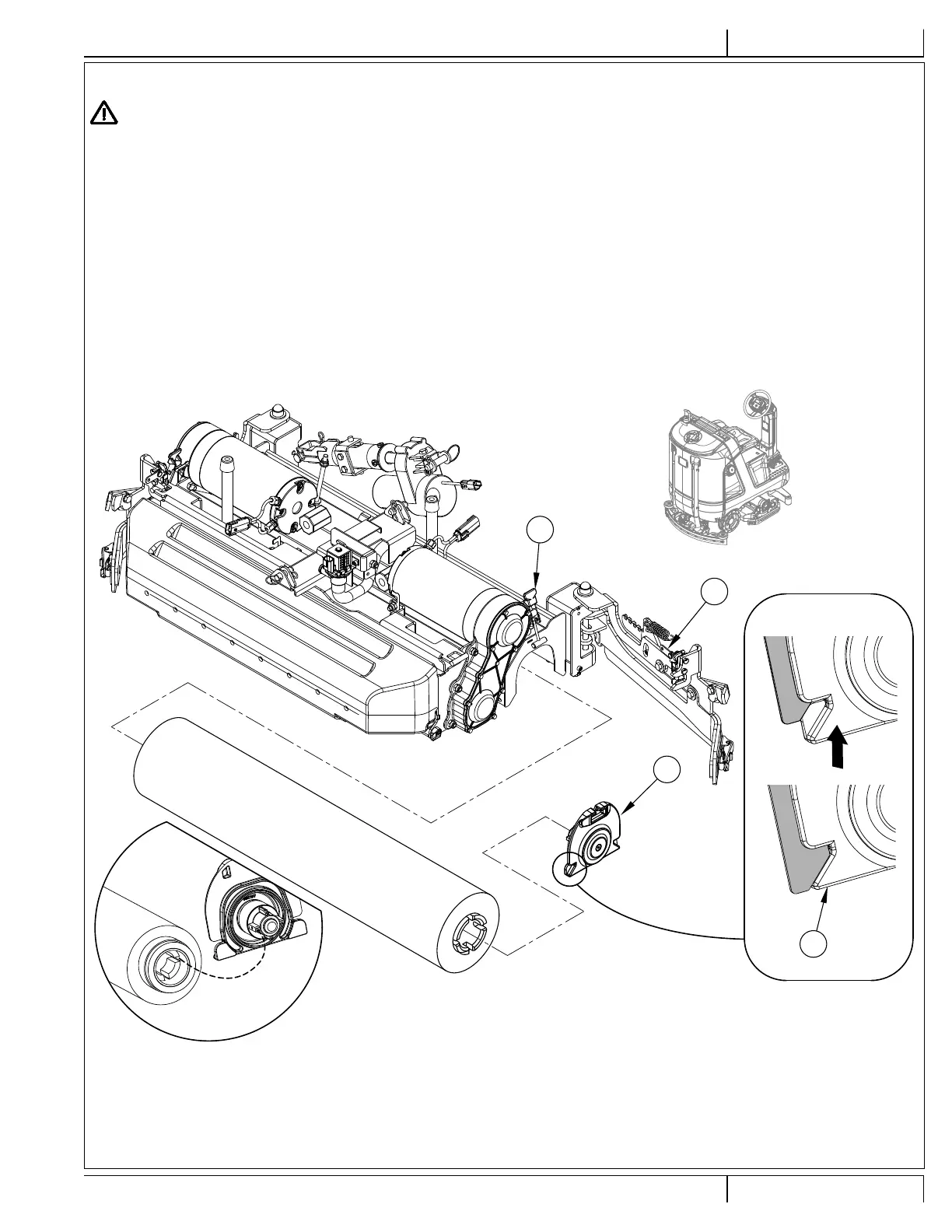

FIGURE 2-3
AA
AB
AC
AC
