A-4 / ENGLISH

A-4 - FORM NO. 56091013 - ES4000

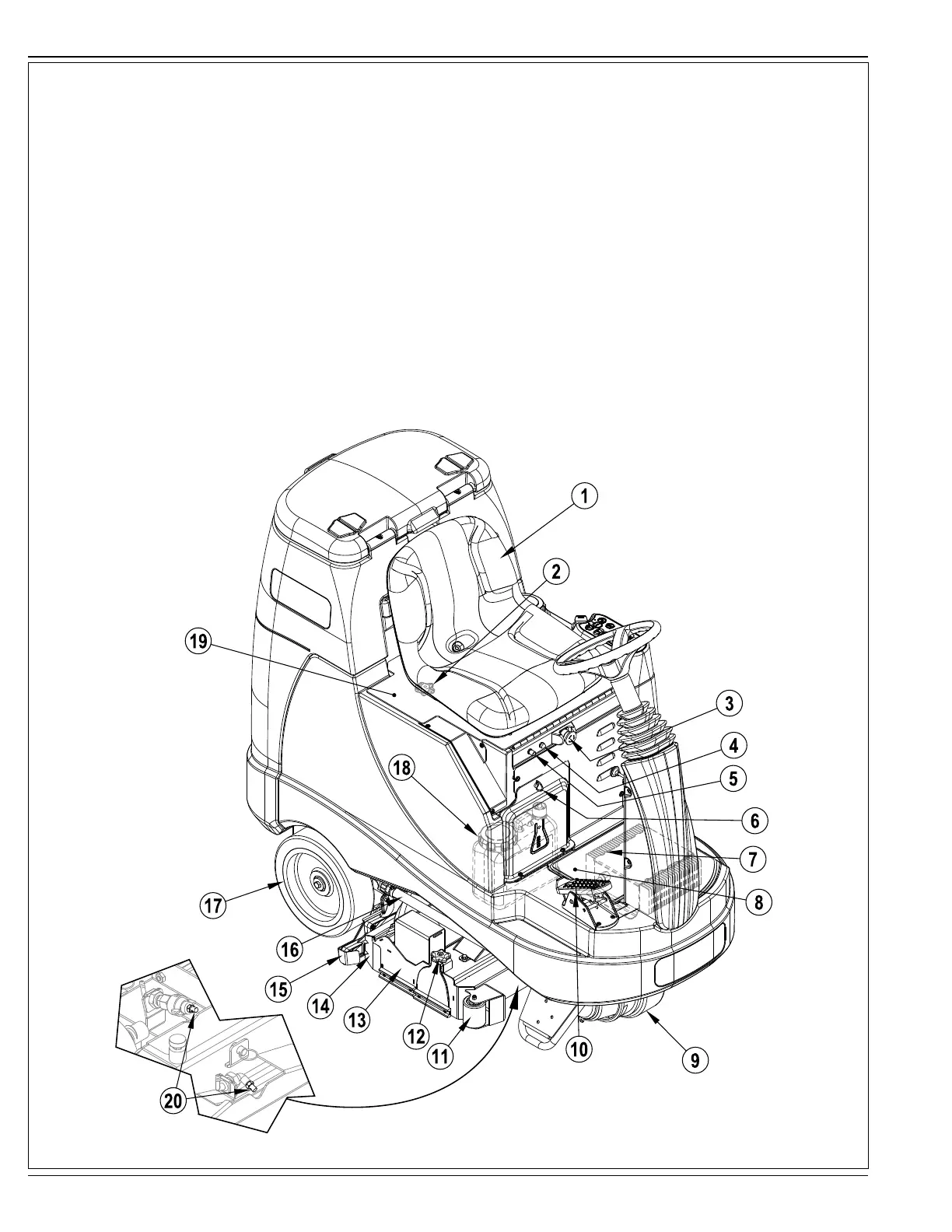

KNOW YOUR MACHINE

As you read this manual, you will occasionally run across a bold number or letter in parentheses - example: (2). These numbers refer to an item shown on these

pages unless otherwise noted. Refer back to these pages whenever necessary to pinpoint the location of an item mentioned in the text. NOTE: Refer to the

service manual for detailed explanations of each item illustrated on the next 3 pages.

1 Operator’s Seat

2 Seat Adjustment Knob

3 Emergency Stop

4 Control Circuit Circuit Breaker (10 Amp)

5 Drive Wheel Circuit Breaker (70 Amp)

6 Detergent Cartridge Access Cover

7 Battery Charger (optional)

8 Battery Charger Access Door

9 Drive Wheel

10 Drive Pedal, Directional/Speed

11 Front Roller Bumper

12 Brush Idler Removal Knob

13 Brush Deck

14 Debris Hopper

15 Vacuum Shoes

16 Solution Tank Drain Hose

17 Rear Wheel

18 Detergent Cartridge

19 Battery Compartment (under seat)

20 Solution Spray Jets
