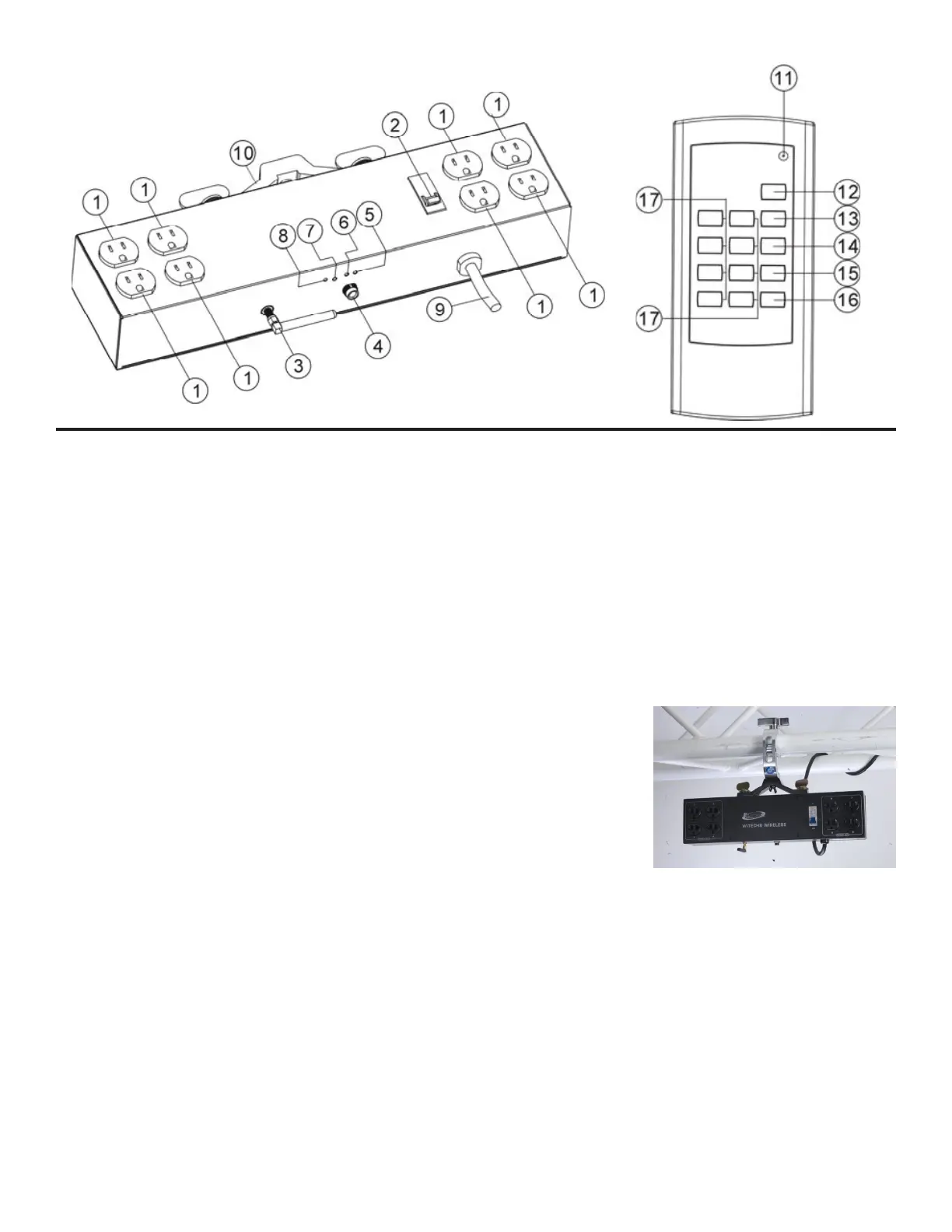

CONTROLS AND FUNCTIONS -
WiTECH8 RECEIVER:
1. Power Jacks - 8 power jacks provide power to 8 units.
2. Power Switch - This switch powers on the WiTECH8 Receiver.
3. Antenna - Receives the signal from the WiTECH8 Controller.
4. 1/4” Output Jack - Connect your desired compatiable fixture to this jack.
5-6. LED Outputs - These LED’s will glow indicating activity. Example, the Stand By LED will glow
when the unit is in Stand By mode.
7. Set Up Button - Press this button to set up the receiver.
8. RF Singal LED - This LED will glow when the Set Up button has been pressed.
9. Power Cord - Plug this power cord into a compatible voltage power source to power the
WiTECH8.
10. Fast Lock Hook - This bracket is used to hang the WiTECH8
from trussing. See picture at the side.
WiTECH8 CONTROLLER:
11. RF Signal LED - This LED will blink when a command from the controller has been sent to
the receiver.
12. All Off Button - Hold this button for at least 5 seconds to turn off all the fixtures that are
plugged into the power sockets.
13. All On Button - Hold this button for at least 5 seconds to turn on all the fixtures that are
plugged into the power sockets.
14. Stand By Button - Puts the fixture connected to the 1/4” jack into blackout mode.
15. Function Button - This button lets you select different functions. Please see the user manual
of your connected fixture for UC3 programs and functions.
16 Mode Buttons - This button lets you select different functions. Please see the user manual
of your connected fixture for UC3 programs and functions.
17. Power Jacks On/Off Button - This button activates and deactivates all of the power jacks.
Hold this button for at least 5 seconds to activate the power jacks.
WiTECH8 RECEIVER
WiTECH8 CONTROLLER
