DMX SETUP
Power Supply: Before plugging your unit in, be sure the voltage of the power source matches the
required voltage for your device. Only use the included power supply.
DMX-512: DMX is short for Digital Multiplex. This is a universal protocol used by most lighting and
controller manufacturers as a form of communication between intelligent xtures and controllers. A
DMX controller sends DMX data instructions from the controller to the xture. DMX data is sent as serial
data that travels from xture to xture via the DATA “IN” and DATA “OUT” XLR terminals located on all
DMX xtures (most controllers only have a DATA “OUT” terminal).
DMX Linking: DMX is a language allowing all makes and models of different manufacturers to be
linked together and operate from a single controller, as long as all xtures and the controller are DMX
compliant. To ensure proper DMX data transmission, try to use the shortest cable path possible when
linking several DMX xtures. The order in which xtures are connected in a DMX line does not inuence
the DMX addressing. For example, a xture assigned a DMX address of 1 may be placed anywhere in a
DMX line: at the beginning, at the end, or anywhere in the middle. Therefore, the rst xture controlled
by the controller could be the last xture in the chain. When a xture is assigned a DMX address of 1,
the DMX controller knows to send DATA assigned to address 1 to that unit, no matter where it is located
in the DMX chain.
Data Cable (DMX Cable) Requirements (For DMX Primary/Secondary Operation): This DMX
controller and unit require an approved DMX-512 110 Ohm Data cable for data input and data output.
We recommend Accu-Cable DMX cables. If you are making your own cables, be sure to use standard
110-120 Ohm shielded cable. (This cable may be purchased at almost all professional sound and

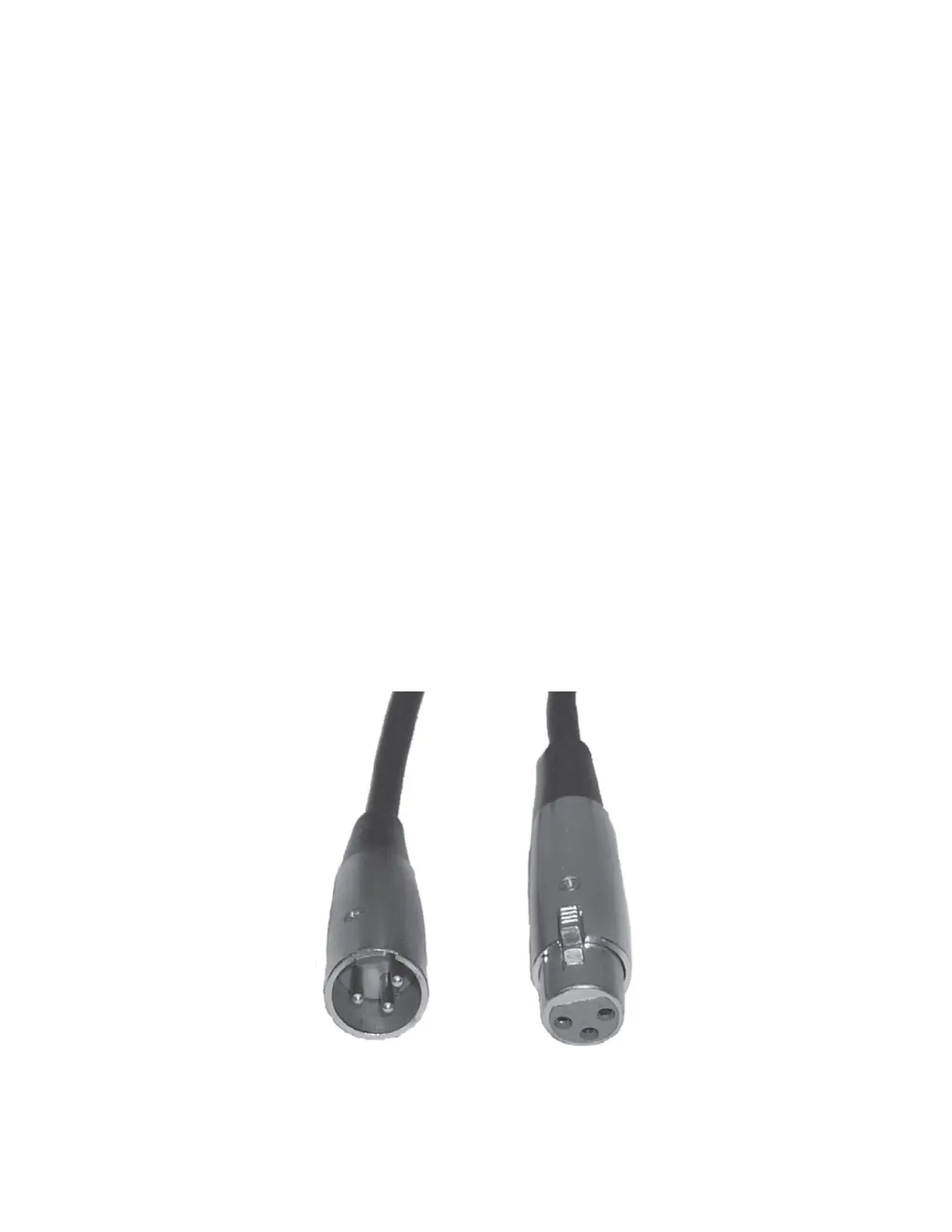

lighting stores). Your cables should be made with a male XLR connector at one end and a female XLR
connector at the other. Also remember that DMX cable must be daisy chained and cannot be split.
