13
INSTALLATION GUIDELINES

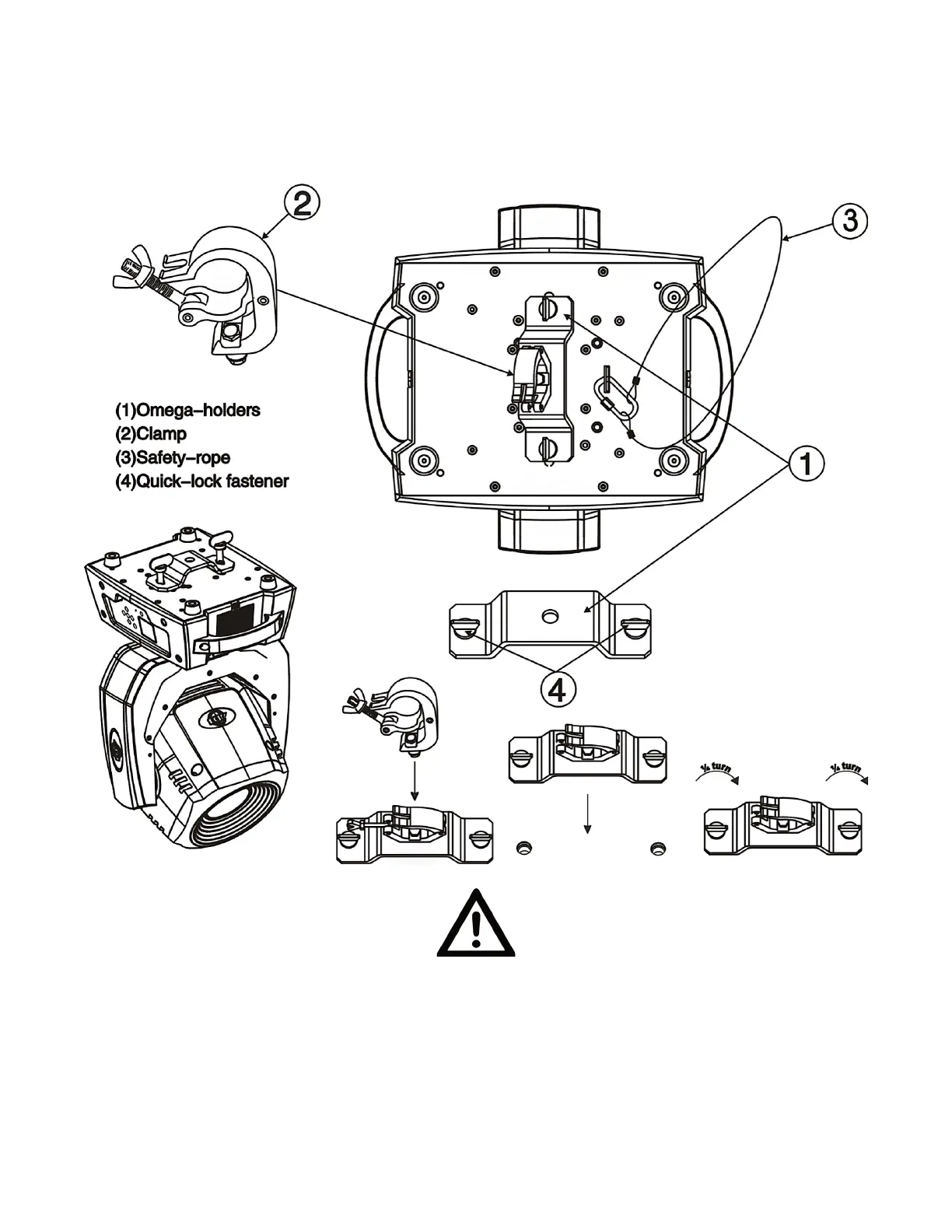

OMEGA BRACKETS INSTALLATION
Insert the Omega Brackets into the matching holes on the bottom of the xture. Secure the Omega
Brackets to the xture by turning each quick-lock fastener ¼ turn clockwise; making sure the fastener is
completely locked. Omega Brackets can be installed into the xture base as illustrated below.
SAFETY CABLE
ALWAYS ATTACH A SAFETY WHENEVER INSTALLING THIS FIXTURE IN A SUSPENDED
ENVIRONMENT TO ENSURE THE FIXTURE WILL NOT FALL IF THE CLAMP FAILS.
CLAMP INSTALLATION
When mounting xture to truss, be sure to secure an appropriately rated professional grade rigging
clamp to the included Omega Brackets using an M10 screw tted through the center hole of the
Omega Brackets. The xture provides built-in rigging points for a SAFETY CABLE (not included). Be
sure to only use one of the designated rigging points for the safety cable and never secure a safety
cable to a carrying handle.
