11
LAMP REPLACEMENT
Caution: Always replace with the exact same type lamp and fuse, unless otherwise specied by an
authorized ADJ service technician. Replacing with anything other than the specied part can damage
your unit and will void your manufactures warranty.
Warning: If you continue to blow lamps or fuses, STOP using the unit. Contact customer support for
further instructions, you may have to return the unit for servicing. Continuing to use the unit may cause
serious damage.
Lamp Replacement: Caution! Never attempt to change the lamp while the xture is plugged in. Always
disconnect the main power and allow the unit ample time to cool before attempting to replace the lamp.
Please see page 7 for important information regarding the discharge lamp.
1. Be sure to follow the proper handling procedures that deal with discharge lamps.
2. Remove the three small screws (labeled A, B, & C) on the rear of the moving head.
3. After removing the screws, gently remove the panel.

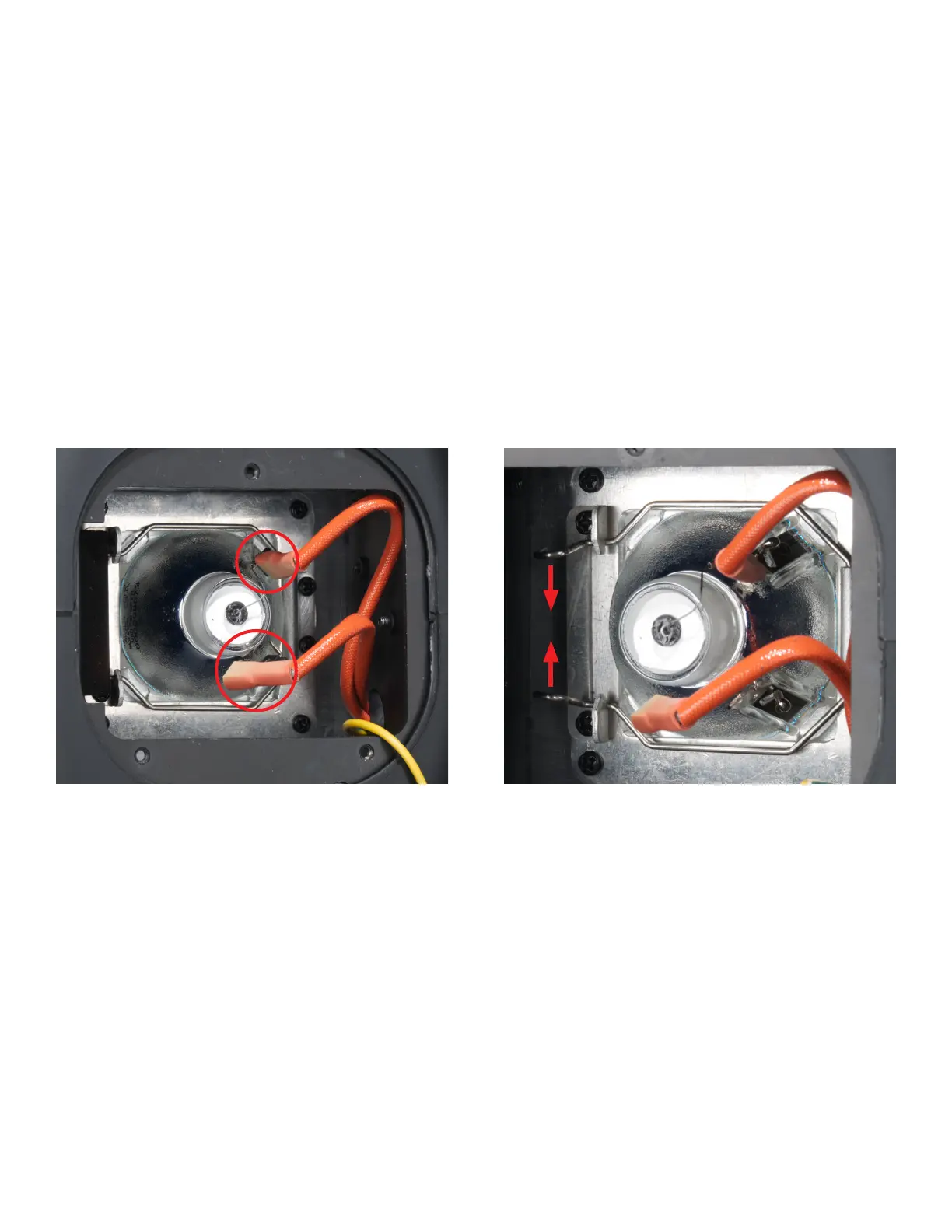

4. Carefully disconnect the two wires connected to the lamp (Figure 1).
5. Next, located on the left side squeeze the lamp holding clips togther and lift the holder (Figure 2).
6. Replace the lamp with an exact match. Reassemble in reverse order.
Figure 1 Figure 2
