DMX SET UP

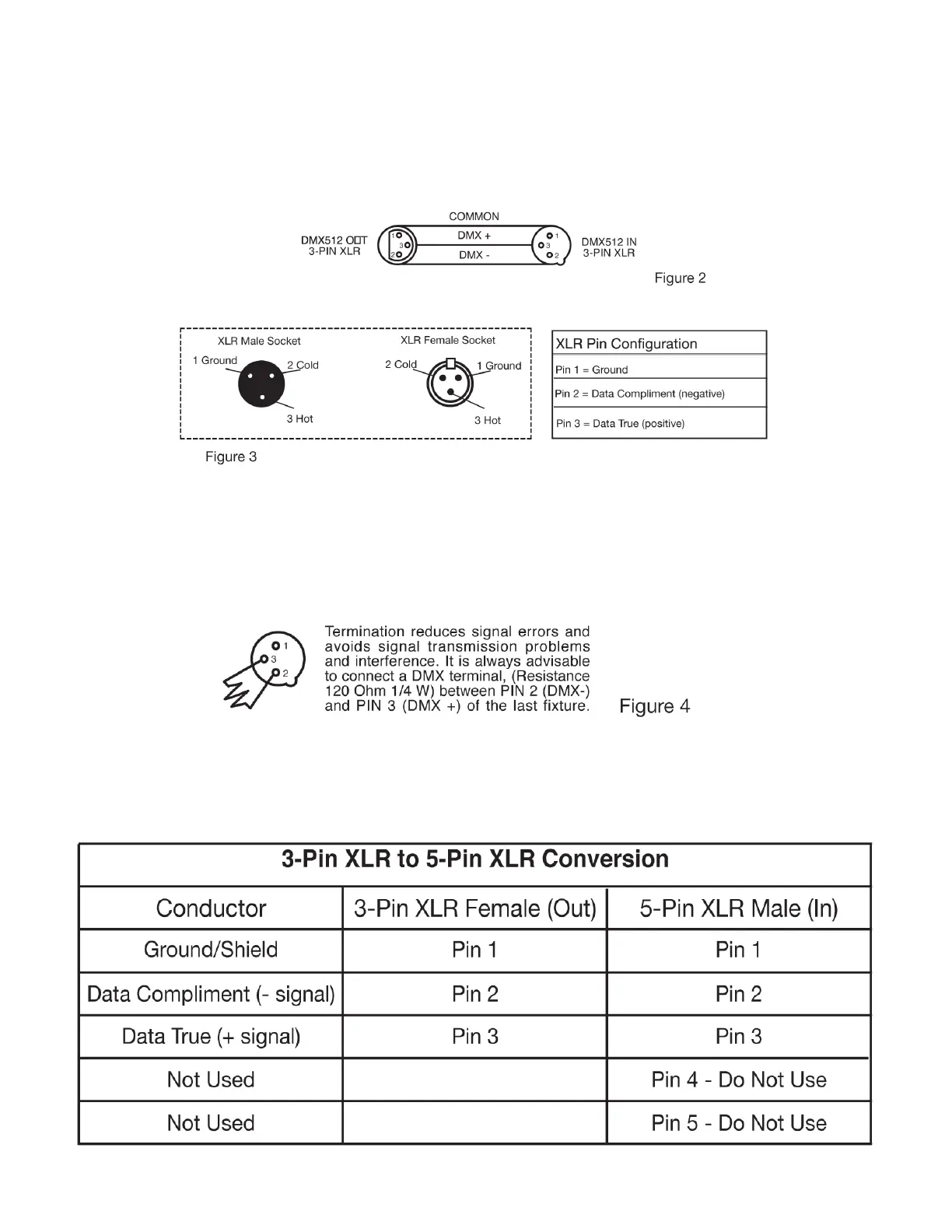

Notice: Be sure to follow gures two and three when making your own cables. Do not use the ground
lug on the XLR connector. Do not connect the cable’s shield conductor to the ground lug or allow the
shield conductor to come in contact with the XLR’s outer casing. Grounding the shield could cause a
short circuit and result in erratic behavior.
Special Note: Line Termination. When longer runs of cable are used, you may need to use a termi-
nator on the last unit to avoid erratic behavior. A terminator is a 90-120 ohm 1/4 watt resistor which is
connected between pins 2 and 3 of a male XLR connector (DATA + and DATA -). This unit is inserted
into the female XLR connector of the last unit in your daist chain to terminate the line. Using a cable
terminator (ADJ part number Z-DMX/T) will decrease the possibilities of erratic behavior.
5-Pin XLR DMX Connectors. Some manufactures use 5-pin XLR connectors for DATA transmission
in place of 3-pin. 5-pin XLR xtures may be implemented in a 3-pin XLR DMX line. When inserting
standard 5-pin XLR connectors into a 3-pin line, a cable adaptor must be used. These adaptors are
readily available at most electronics stores. The chart below details a proper cable conversion.
