Dotz Panel 2.4 Set Up
ADJ Products, LLC - www.adj.com - Dotz Panel 2.4 User Manual Page 6
Power Supply: The ADJ Dotz Panel 2.4 contains an automatic voltage switch, which will auto sense
the voltage when it is plugged into the power source. With this switch there is no need to worry
about the correct power voltage, this unit can be plugged in anywhere. Always use the power cable
that was included with the unit.
DMX-512: DMX is short for Digital Multiplex. This is a universal protocol used by most lighting and
controller manufacturers as a form of communication between intelligent xtures and controllers. A
DMX controller sends DMX data instructions from the controller to the xture. DMX data is sent as
serial data that travels from xture to xture via the DATA “IN” and DATA “OUT” XLR terminals locat-
ed on all DMX xtures (most controllers only have a DATA “OUT” terminal).
DMX Linking: DMX is a language allowing all makes and models of dierent manufactures to be
linked together and operate from a single controller, as long as all xtures and the controller are DMX
compliant. To ensure proper DMX data transmission, when using several DMX xtures try to use
the shortest cable path possible. The order in which xtures are connected in a DMX line does not
inuence the DMX addressing. For example; a xture assigned a DMX address of 1 may be placed
anywhere in a DMX line, at the beginning, at the end, or anywhere in the middle. When a xture is
assigned a DMX address of 1, the DMX controller knows to send DATA assigned to address 1 to that
unit, no matter where it is located in the DMX chain.
Data Cable (DMX Cable) Requirements (For DMX Operation): The Dotz Panel 2.4 can be con-
trolled via DMX-512 protocol. The Dotz Panel 2.4 has 5 DMX Channel Modes. The DMX address is
set on the rear panel of the Dotz Panel 2.4. Your unit and your DMX controller require an approved

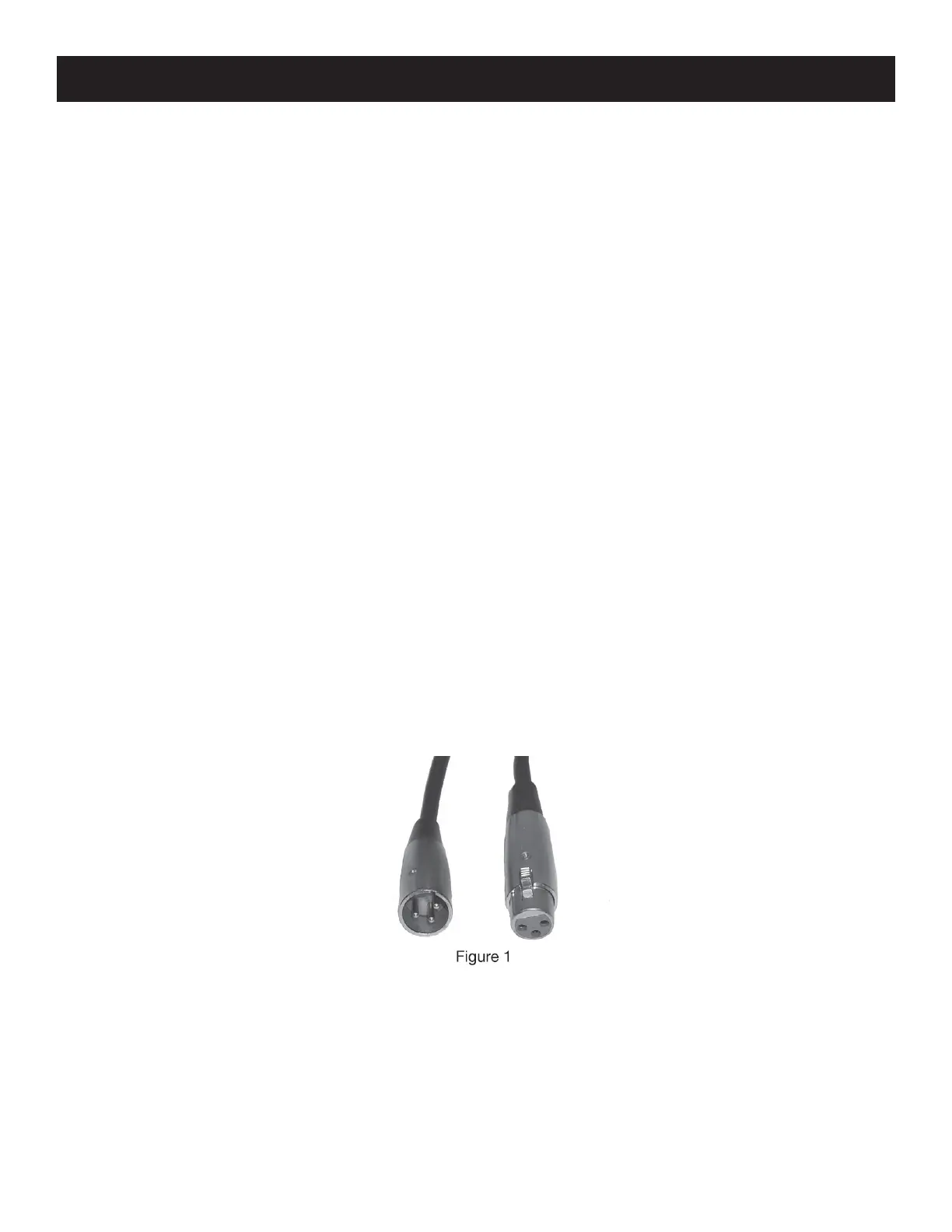

DMX-512 110 Ohm Data cable for data input and data output (Figure 1). We recommend Accu-Cable
DMX cables. If you are making your own cables, be sure to use standard 110-120 Ohm shielded ca-
ble (This cable may be purchased at almost all professional sound and lighting stores). Your cables
should be made with a male and female XLR connector on either end of the cable. Also remember
that DMX cable must be daisy chained and cannot be split.
