INSTALLATION – RIGGING
The AV6XS is compatible with ADJ’s AV6RB2 rigging bar (sold separately), which easily and securely
locks to the top of the first panel in a vertical hang of up to 20 AV6XS panels, allowing them hang from
a truss, hoist, or lintel beam. A qualified technician or trained professional is required to fly the AV6RB2
Rigging Beam/AV6XS LED Video Panel assembly.

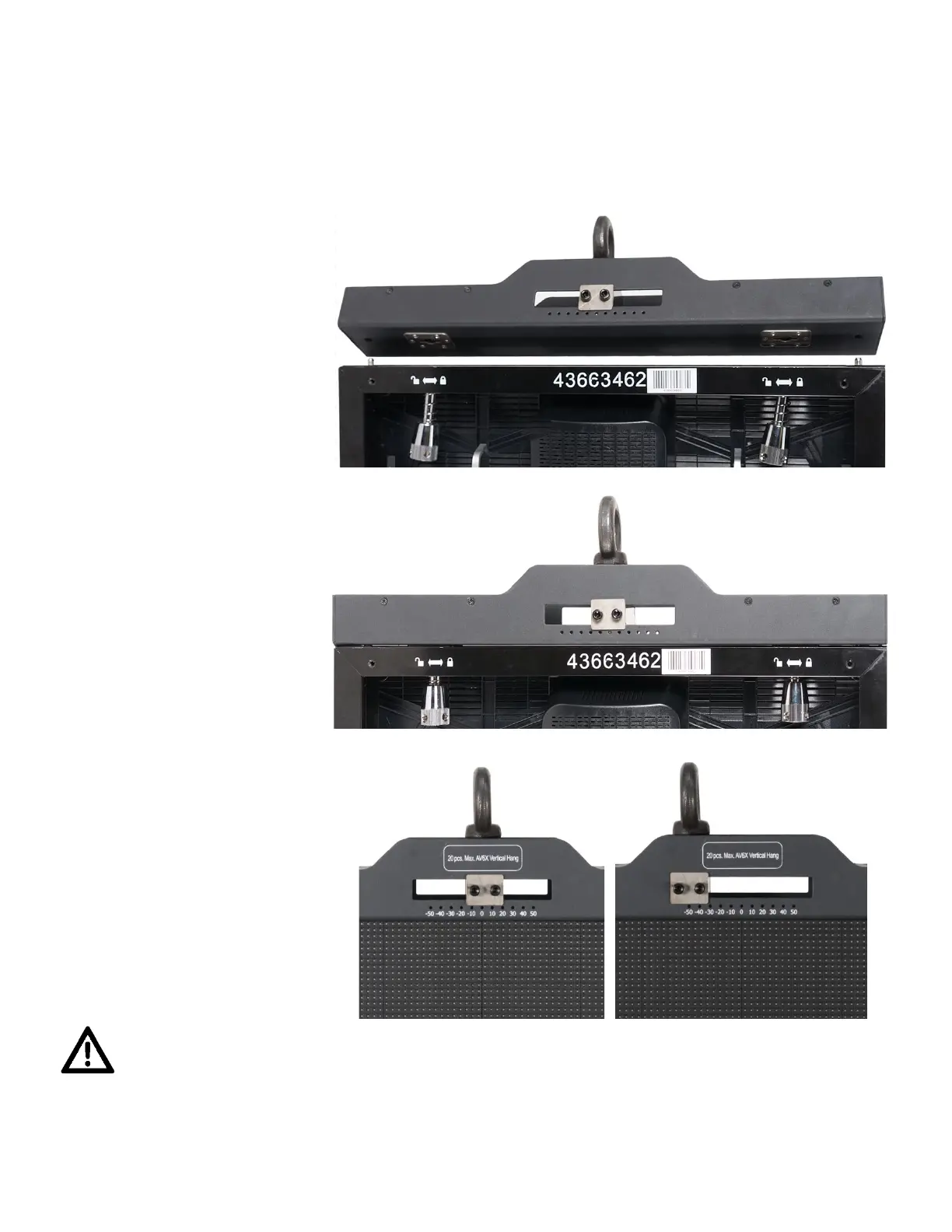

1. Insert alignment pins on
AV6XS LED Video Panels
into the vertical alignment
holes on the AV6RB2
Rigging Bar
2. Push locking vertical
connectors up through their
corresponding slotted
vertical tab-keyed
connector sockets in the
AV6RB2 Rigging Bar, and
compress spring of vertical
panel connectors and
passing their locking-tab
through tab-keyed
connector socket, and turn 90° to lock
Note that a total of 20 Panels can
be connected vertically. Vertical
anchor point is adjustable ±50° in
10° increments
NOTE: 20 MAX. PANELS PER RIGGING BAR
