16
INSTALLATION – ASSEMBLY

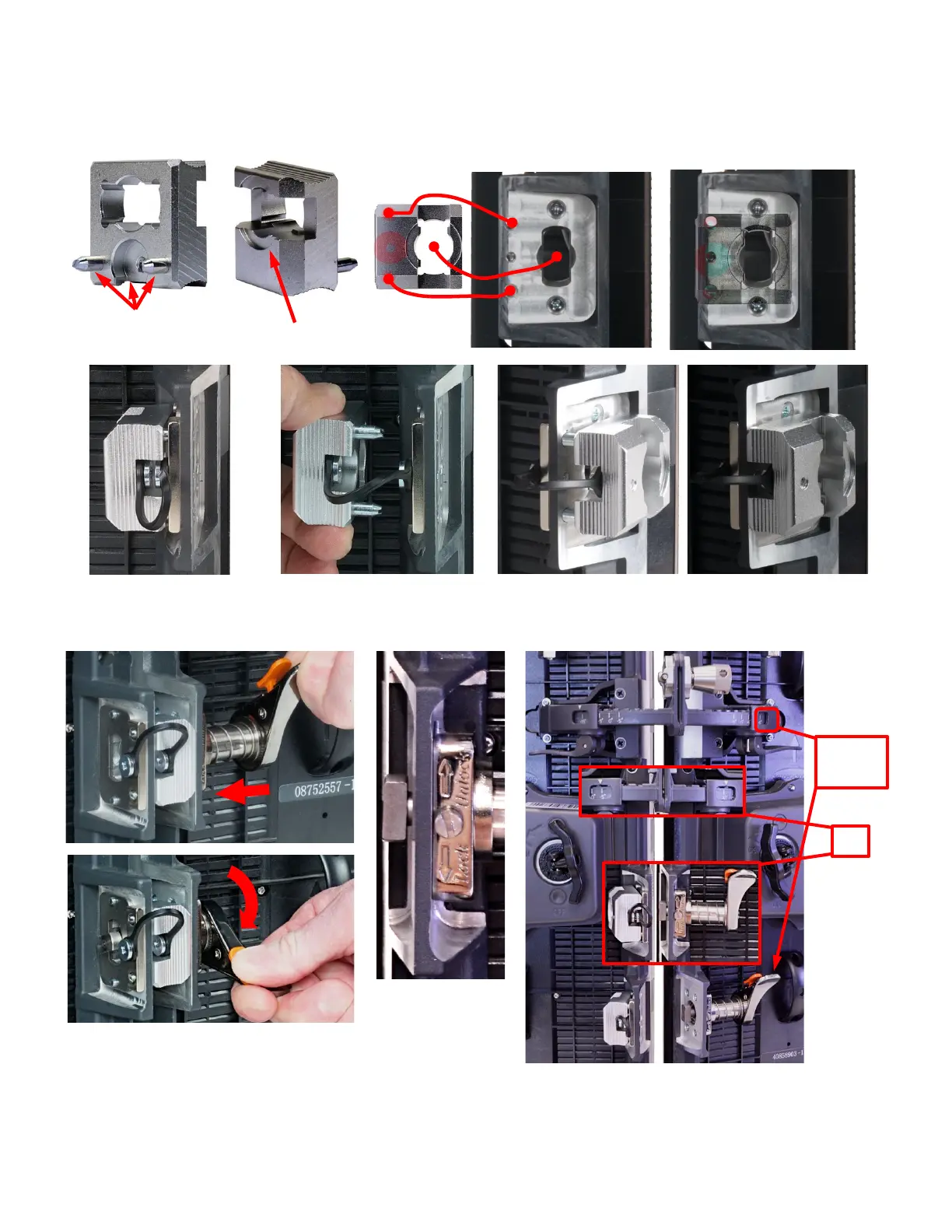

AV3FWA Flat Wall Adapter:
For flat wall assembly, the AV3FWA (Flat Wall Adapter) must be installed to stabilize flat panel
assembly, and to help protect LEDs at the bottom edge of the screen from damage.
Alignment posts and
socket for rubber
attachment grommet
Connector
socket
The AV3FWA remains
attached inside bottom
panel for Concave or
Convex Angles.
For flat screen installation
(0°), remove the AV3FWA
(note rubber attachment
grommet).
Align and insert the
posts of the AV3FWA
with outside post-holes
of socket.
A magnet holds the
AV3FWA in place.
1. Align locking-tab with tab-keyed
connector socket, then pass locking-tab
through both the tab-keyed connector
socket and the AV3FWA, and lock.
2. To lock, squeeze
orange-tab and
rotate lever down.
To unlock, squeeze
orange-tab and
rotate lever up
The bottom socket connector and AV3FWA is
not used with other angles (-5°, 5°, 10°, & 15°)
5°, 10°,
& 15°
-5°
