17
INSTALLATION - ASSEMBLY

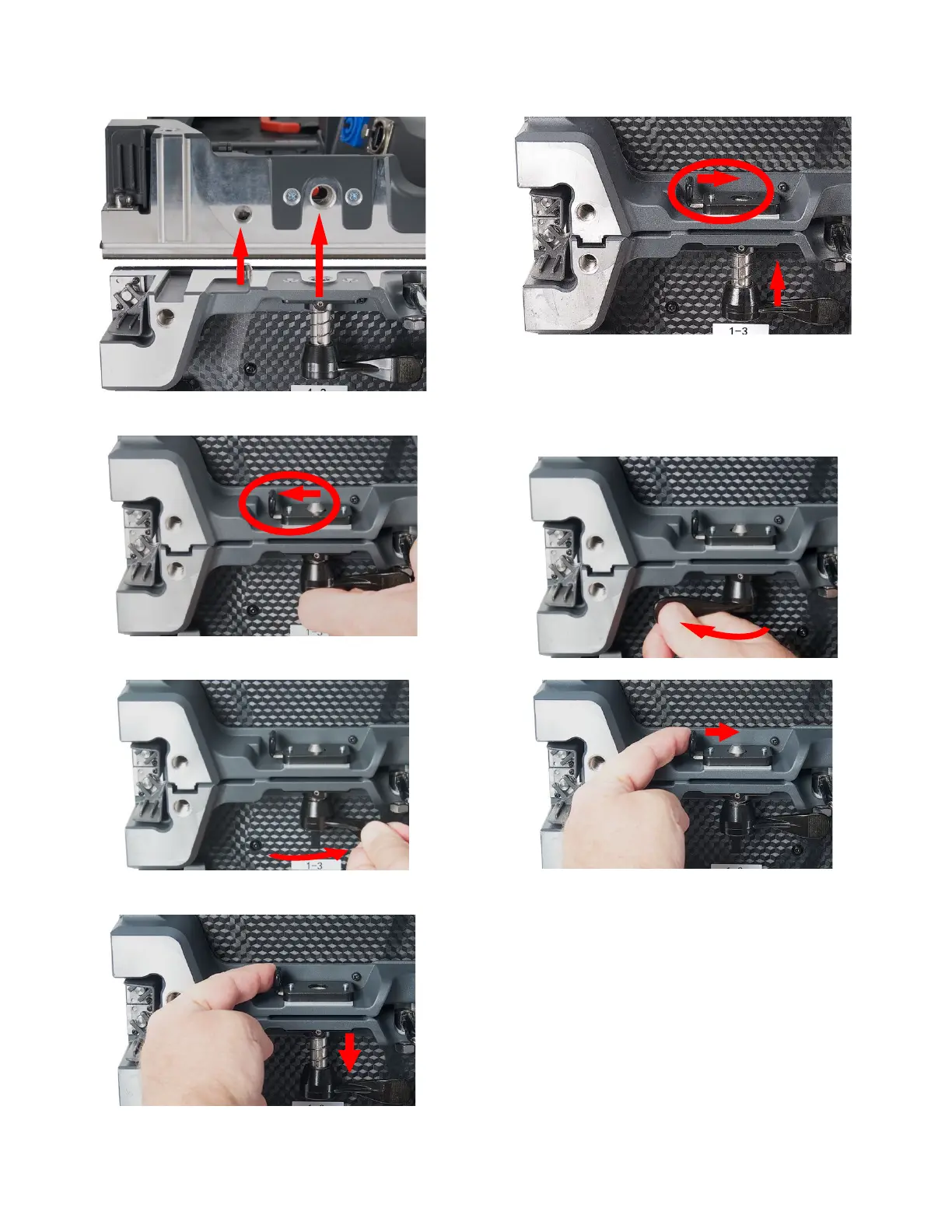

Vertical Panel Assembly
Align the vertical positional posts with their
corresponding alignment holes.
The vertical tab-keyed connector is spring
loaded. Press locking latch lever while pressing
vertical key-tabbed connector into matching tab-
keyed hole of locking-latch.
The vertical connector will snap into place
when the latch snaps back to lock connector.
To tighten, twist lever to the left (clockwise).
To unlock the vertical connector, rotate lever to
the right (counter-clockwise).
Press spring-loaded locking socket latch
towards the right.
Once latch is released, the vertical connector
will snap open.
