Preparation and Initial Start-up of the Length Measuring
This symbol means: "Consult operating instructions". To achieve accurate
results, read the instructions for use carefully before use and follow all
instructions provided therein. Keep the instructions for use for future reference.
Your ADE-Mechanical Baby Length Measuring is a high quality product. This Baby Length
Measuring is suitable to use for paediatricians, in children’s hospital, for home visits by
midwives and is qualified for a body-length up to 100 cm.
Carton Contents
1 Baby Measuring-Rod
2 Measuring Tongues
1 Operating Manual
Assembling
In order of a space-saving transport, the enclosed measuring tongues are not in a mounted
status. Remove the parts out of the packing.

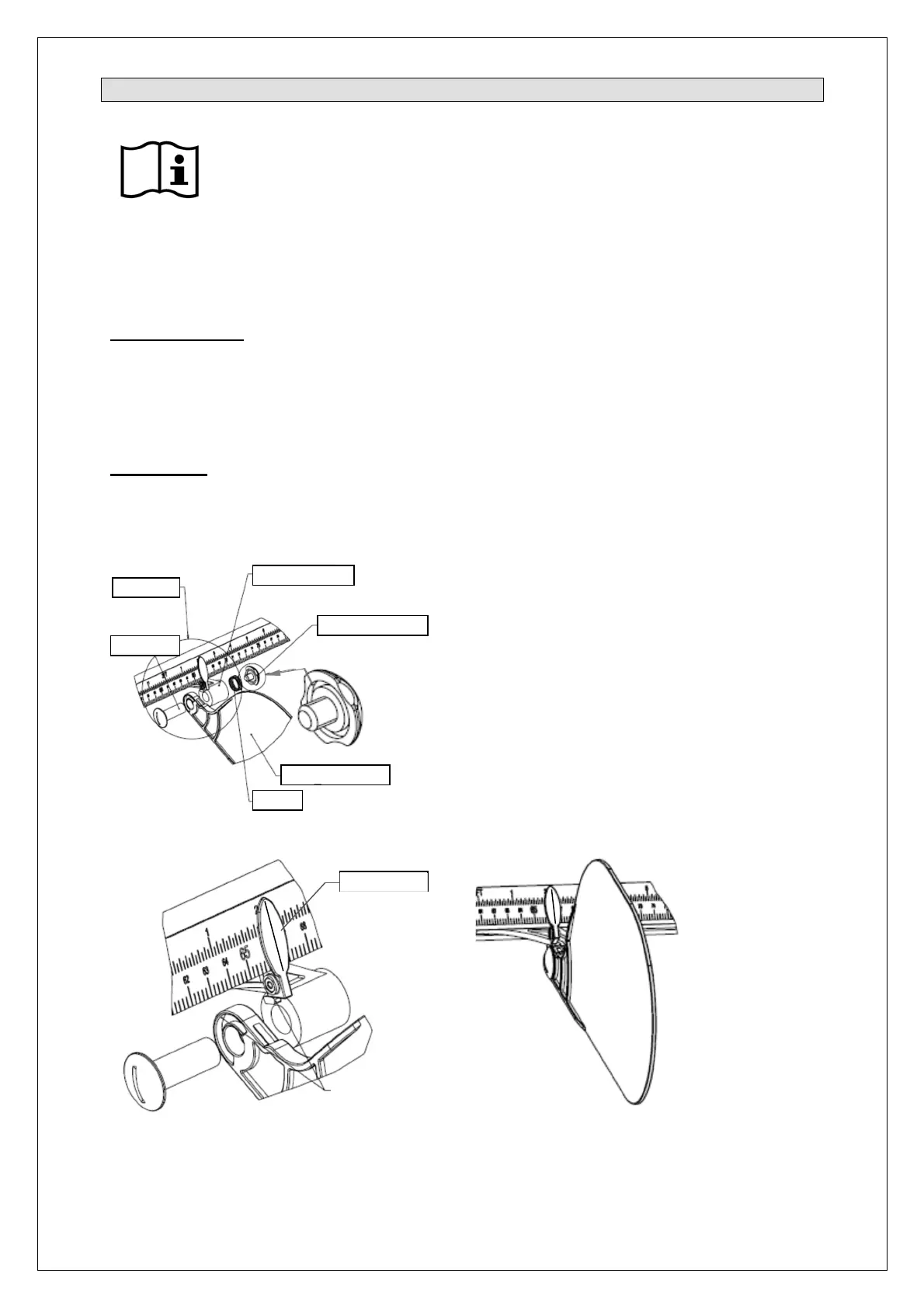

5. Screw off the locking screw.
6. Extract the plug-axle and spring.
7. Push the plug-axle through the drilled hole of
the measuring tongue and stick both at the
sliding carriage.
Pay attention that the arched side of the
measuring tongue face upward (Detail B)
and the nib at the sliding carriage snap
into the groove of the measuring tongue
(Detail A).
8. Attach the spring on the plug-axle and screw
the locking screw again onto the plug-axle.
A
Detail A
Sliding Carriage
Locking Screw
Detail A
Plug-Axle
Spring
Measuring
To
ngue
Detail B
Gauge Mark
