ADDAC816 User’s Guide
DECAY TIME
The Decay time is set using the [TIME] switch.
There’s 2 diferent ranges Short and Long while Off disables the Decay.
Short range goes from 10 to 1000 milliseconds
Long range goes from 1 to 10 seconds
These two ranges are factory calibrated via a trimmer on the side of the module.
Users can change the factory setting in order to make the Decay ranges either
shorter or longer.

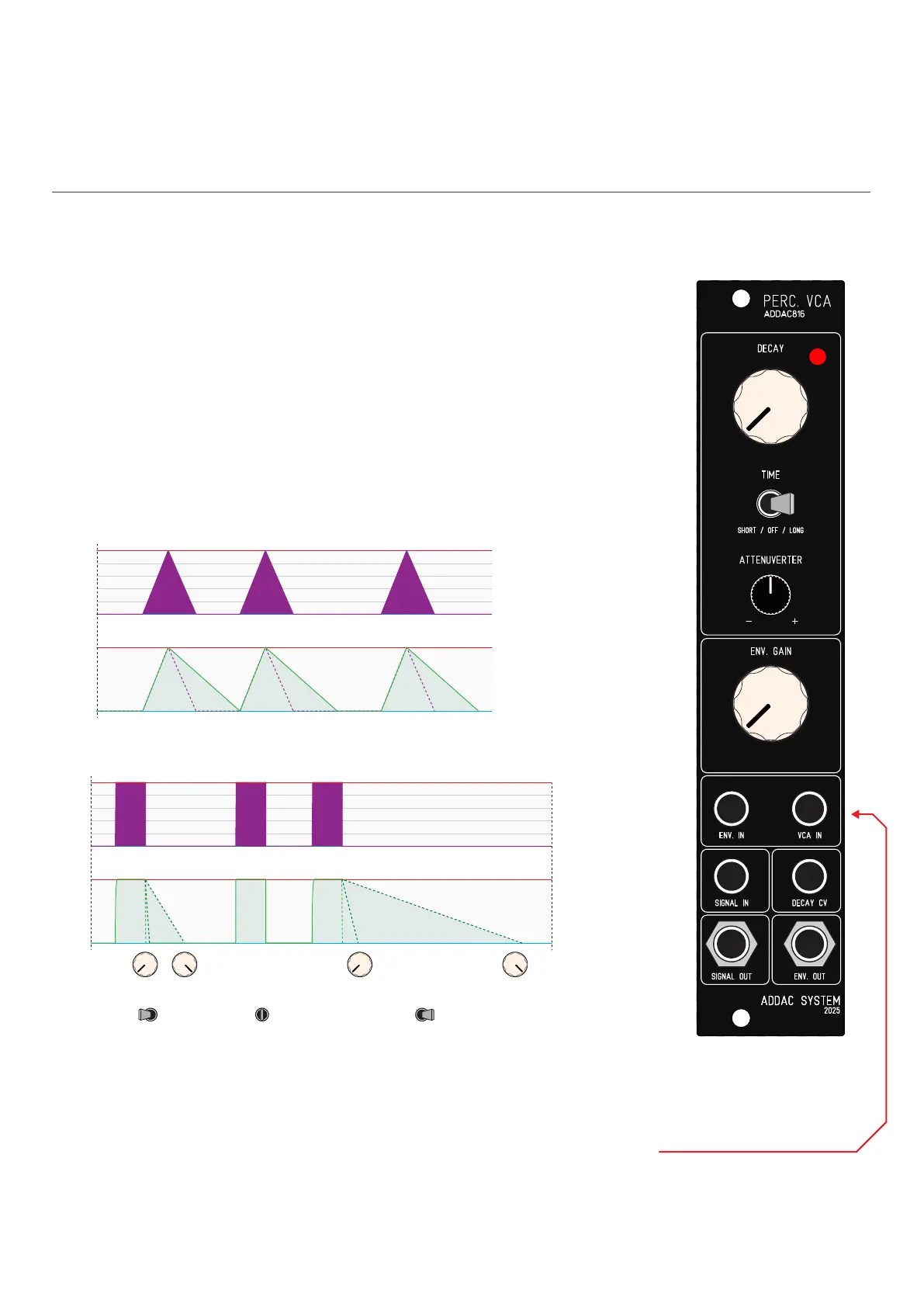

Here’s a couple graphics showing the Decay action when using a CV or Gate
input
VCA INPUT
The VCA input bypasses the Envelope and goes straight into the VCA volume
control with no attenuation. In this case the [ENV. GAIN] works as an offset to the
VCA Input.
+5v
0v
GAIN
0v
CV INPUT
ENVELOPE
SHORT
+5v
0v
+5v
0v
DECAY
(aprox. 100 to 2500 milliseconds)
DECAY
OFF
LONG
DECAY
(aprox. 0.6 to 14 seconds)
GATE INPUT
ENVELOPE
page 5ADDAC SYSTEM
