Dimmer Manager software
Instruction Manual - page 59
Issue: 004
Lighting Technologies
If the current setting is "Obtain an address automatically" then proceed with step 3.
Step 3: select the bullet: "Use the following IP address"
Step 4:IP address: enter an IP address, for example 2.1.1.1
Subnet Mask: 255.0.0.0
Click OK to close the window "Internet Protocol (TCP/IP) Properties".
Click OK to close the window "Local Area Connection Properties".
Close the window "Network Connections".

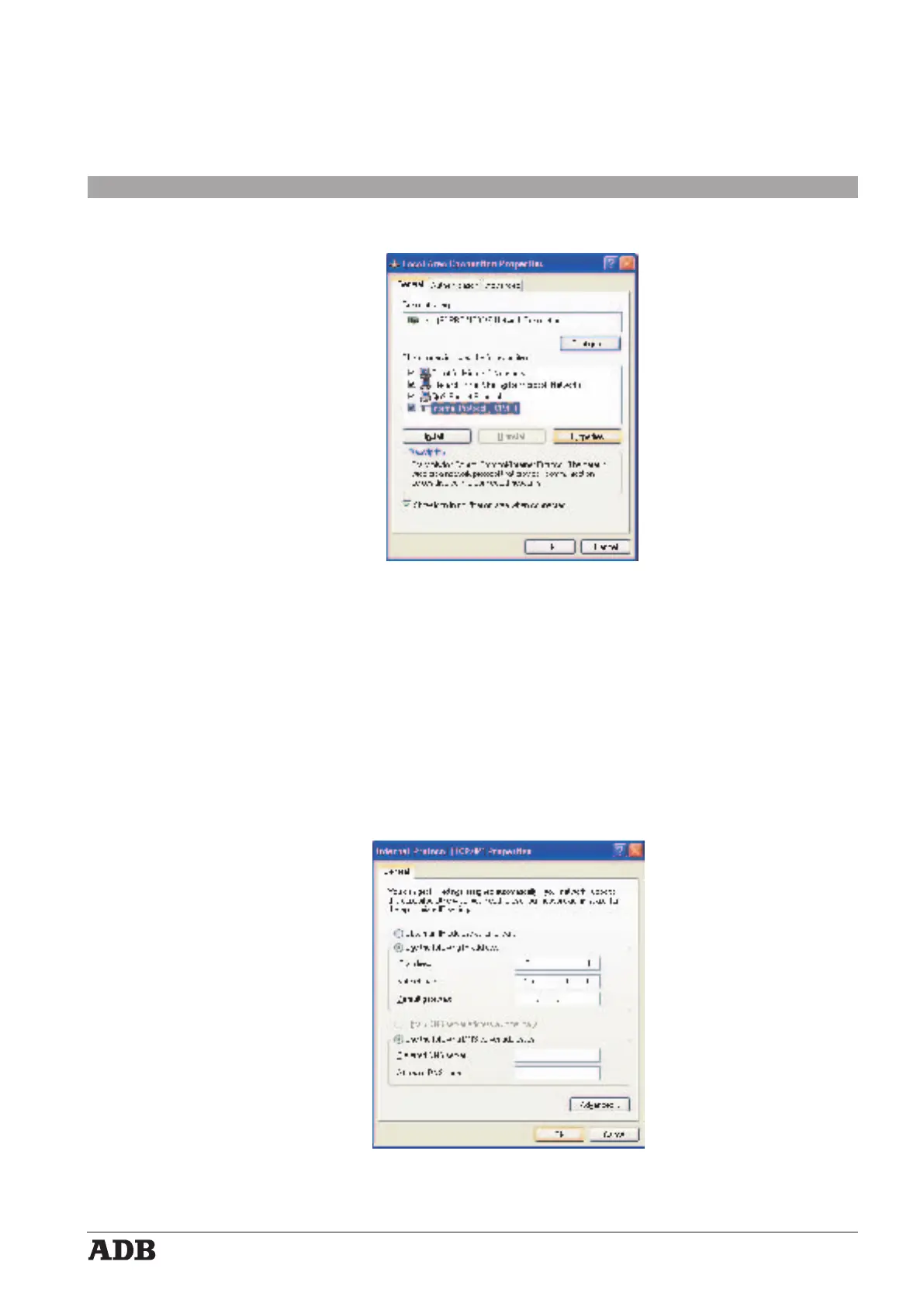

Select Internet Protocol (TCP/IP) and click Properties
This opens a dialogue window "Internet Protocol (TCP/IP) Properties".
Very Important: now make careful notes of the settings as they are. You may need these later
to restore the original configuration.
Step 2: setting required for communication with a NETPORT XT
If the current setting is "Use the following IP address" then go to step 4.
Click Properties. This opens a new window "Local Area Connection Properties"
