KLEMANTIS AS 1000 RGBW
8
4. INSTALLATION AND START-UP
5
4.1 Installing the fixture
4.1.1 Introduction
The Klemantis’ unique asymmetric optical unit has been designed to respond to the increasing need to illuminate walls, scenery and cycloramas uniformly
with a smooth, even wash of seamlessly blended colours. The Klemantis ensures good colour consistency and uniform light distribution on very high
s
cenery, even when the lighting fixture and the projection surface are very close together.
One of the key aspects of the Klemantis is its special precise light intensity distribution. It should therefore be installed carefully in order to exploit its
potential and optimize its performance in cyclorama illumination.
4.1.2 Installation configurations
The Klemantis has been designed to work in a linear set-up, so the fixtures must be aligned in a continuous row. The maximum clearance allowed between
one fixture and the next is 20 mm.

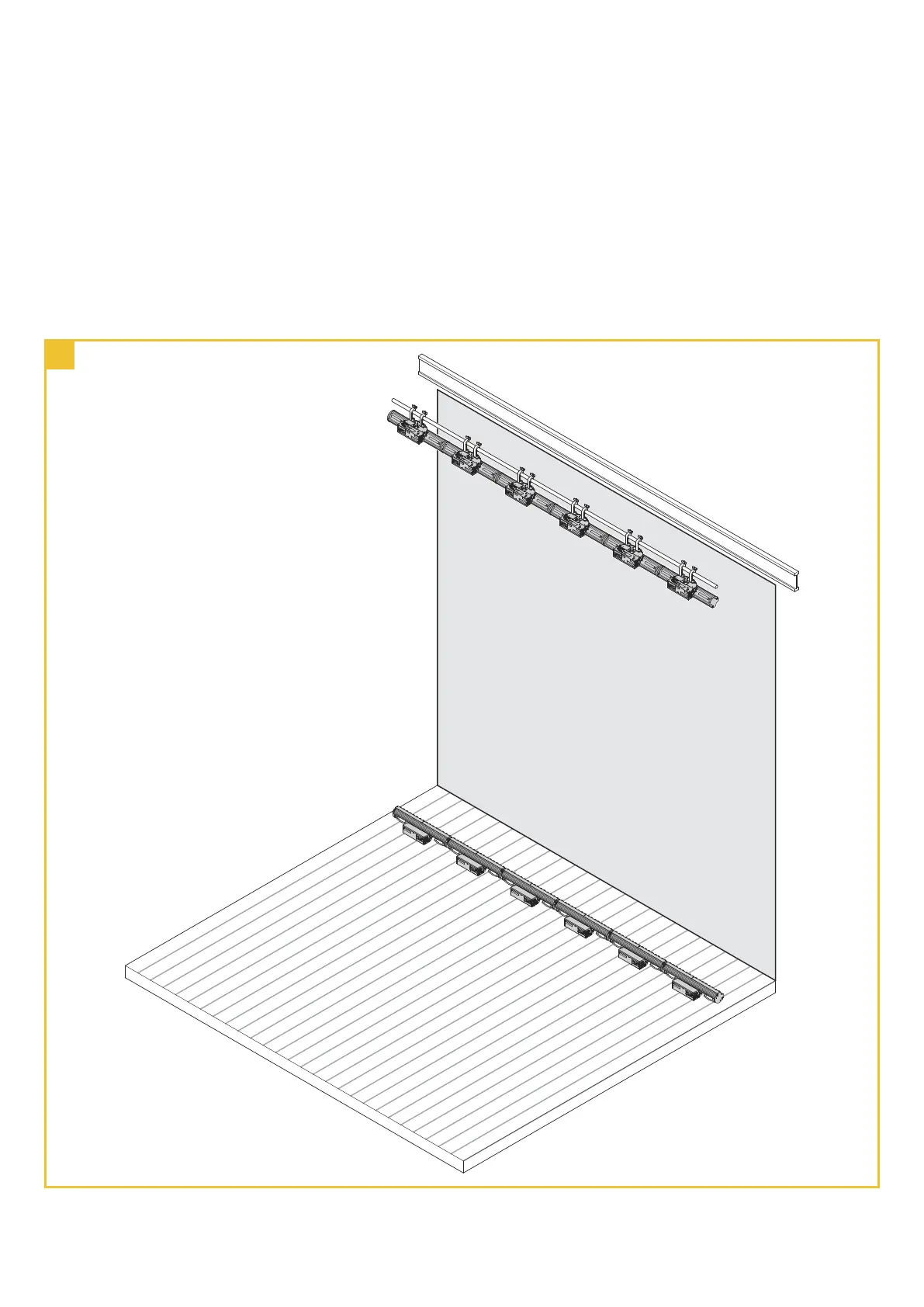

Klemantis installation Fig. 5
Top and bottom configuration
