KLEMANTIS AS1000 - AS500
14
4.3 Connecting the control signal line: DMX / Art-Net
DMX IN
DMX OUT
1
2
SIGNAL
SCREEN
DMX 512
5 PIN
1
2
3
4
5
SIGNAL
DMX 512
IN OUT
13

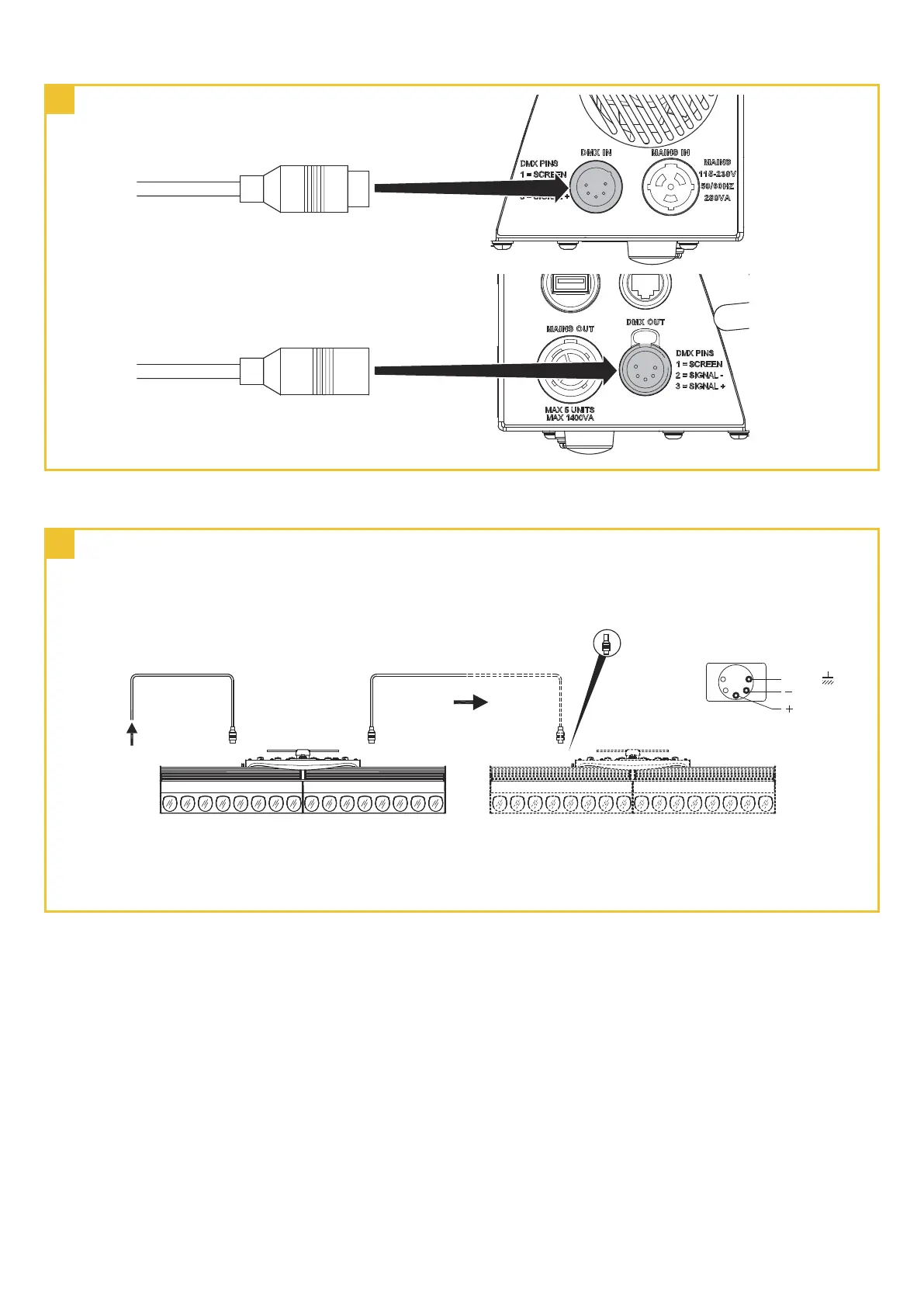

Connecting the control signal line: DMX / Art-Net - Fig. 12-13
Use a cable conforming to specifications EIA RS-485: 2-pole twisted, shielded, 120Ω characteristic impedance, 22-24 AWG, low capacity. Do not use
microphone cable or other cable with characteristics differing from those specified.
Use XLR type 5-pin male/female connectors for end connections. A terminating plug with a resistance of 120 (minimum 1/4 W) between terminals 2 and
3 must be inserted on the last unit.
IMPORTANT: Avoid contact between wires and with the metal casing of the connector.
The casing must be connected to the shield braid and pin 1.
