Dimmer Manager software
Instruction Manual - page 10
Issue: 004
Lighting Technologies
Chapter 4: the Edit Patch functions
This chapter will describe a number of functions related to Patch, House Patch, Dimmer Law,
Dimmer Name, Smoothing…
For more details about these functions, we refer to the dimmer manual “Programming Digital
Dimmers and NETBUS”.

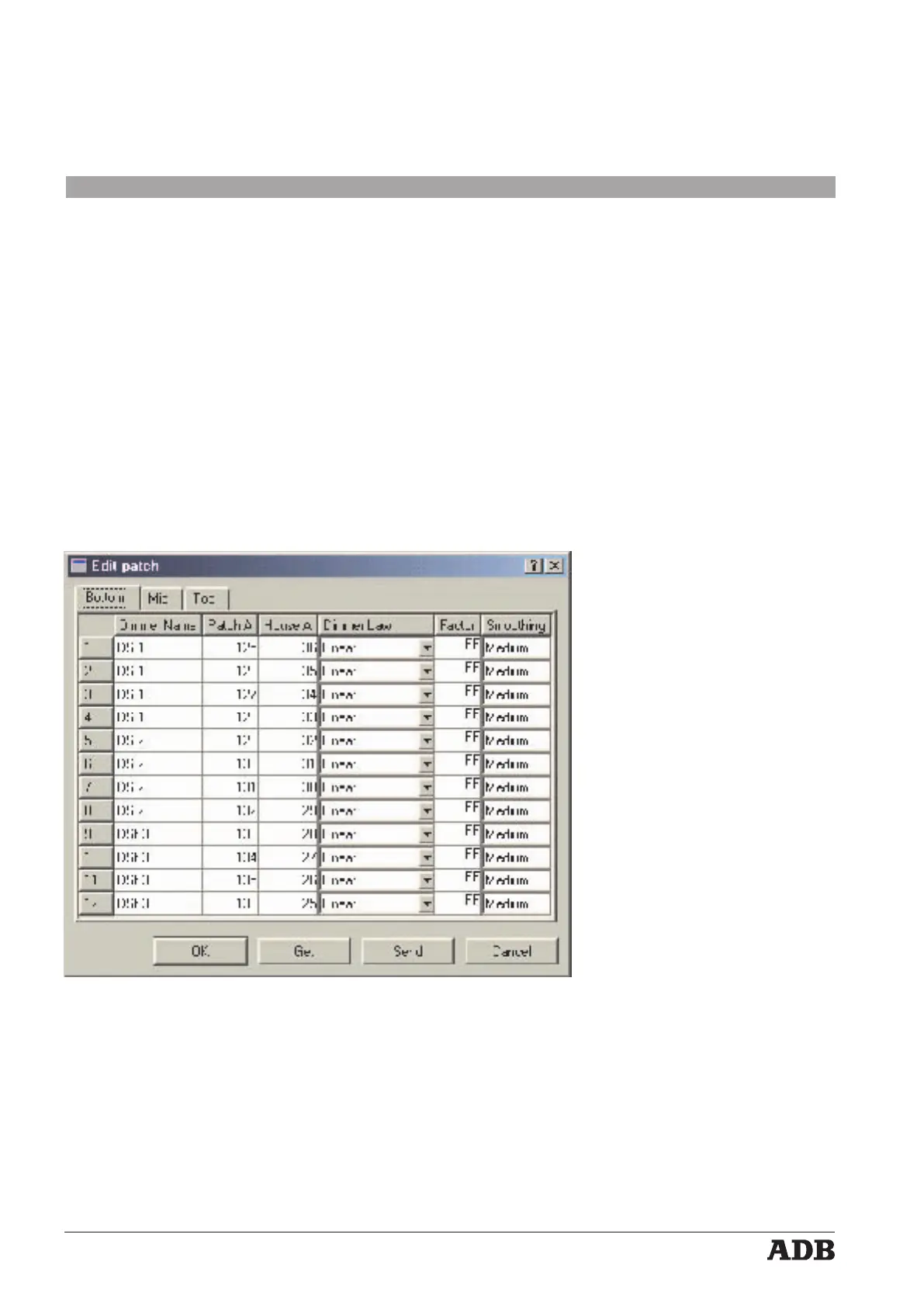

Getting to the Edit Patch functions
• select the dimmer units (or Groups) you want to Edit
• Menu Bar > Dimmers > Edit > Edit Patch
The Get and Send buttons
Opening “Edit Patch” and then clicking the Get button will download the current settings from the
dimmer unit to the Dimmer Manager PC. You will thus update the PC.
Opening Edit Patch and then clicking the Send button will send parameters to the dimmer units.
This will erase the old data in the dimmers.
Patch A
Patch A defines the DMX address (A input) for each dimmer.
Note: fast automatic numbering based on a "DMX start address" is also possible with the
Chapter 3: the Edit Parameters functions function.
