EURODIM TWIN TECH
Page 33 sur 92
7.3 POWER CONFIGURATION MENU
This function configures the module type depending on its position in the cabinet.
Normally, the use of this tools is only necessary for the initial setup of the cabinet. This tool is protected by
level 4 password (ADB password).

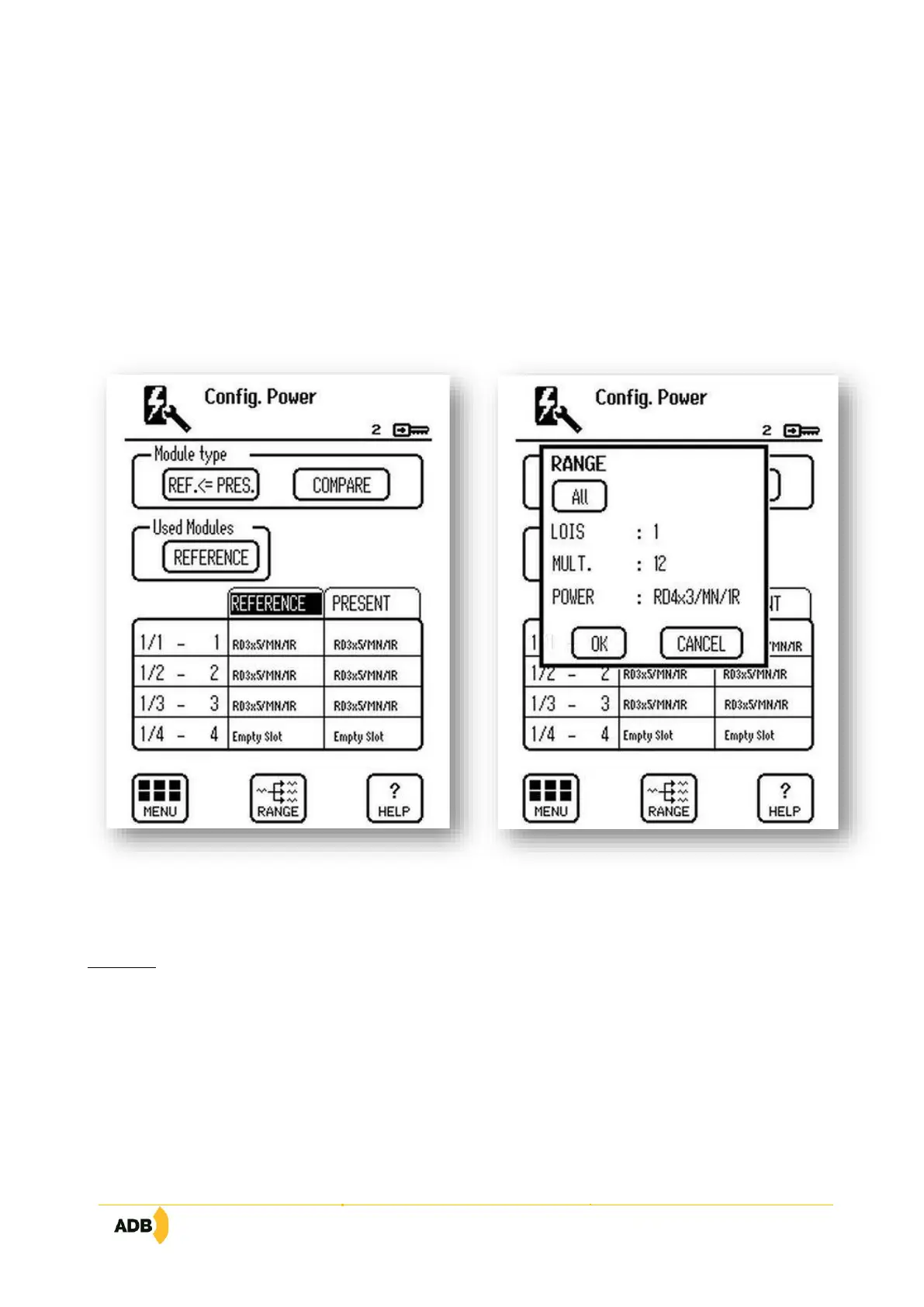

Power page Range key page
Reminder
The referencing of the modules in the cabinet starts at 1 in relation to the first location situated at the top
of the cabinet, up to 32.
The left-hand column contains the referencing of the modules and circuits present in the cabinet:
− Example: Value 1/1: references module 1/circuit 1 of the module
− The right-hand figure indicates the output on the cabinet (from 1 to 128)
