User’s Manual
8
ZNR-423 / ZNR-424

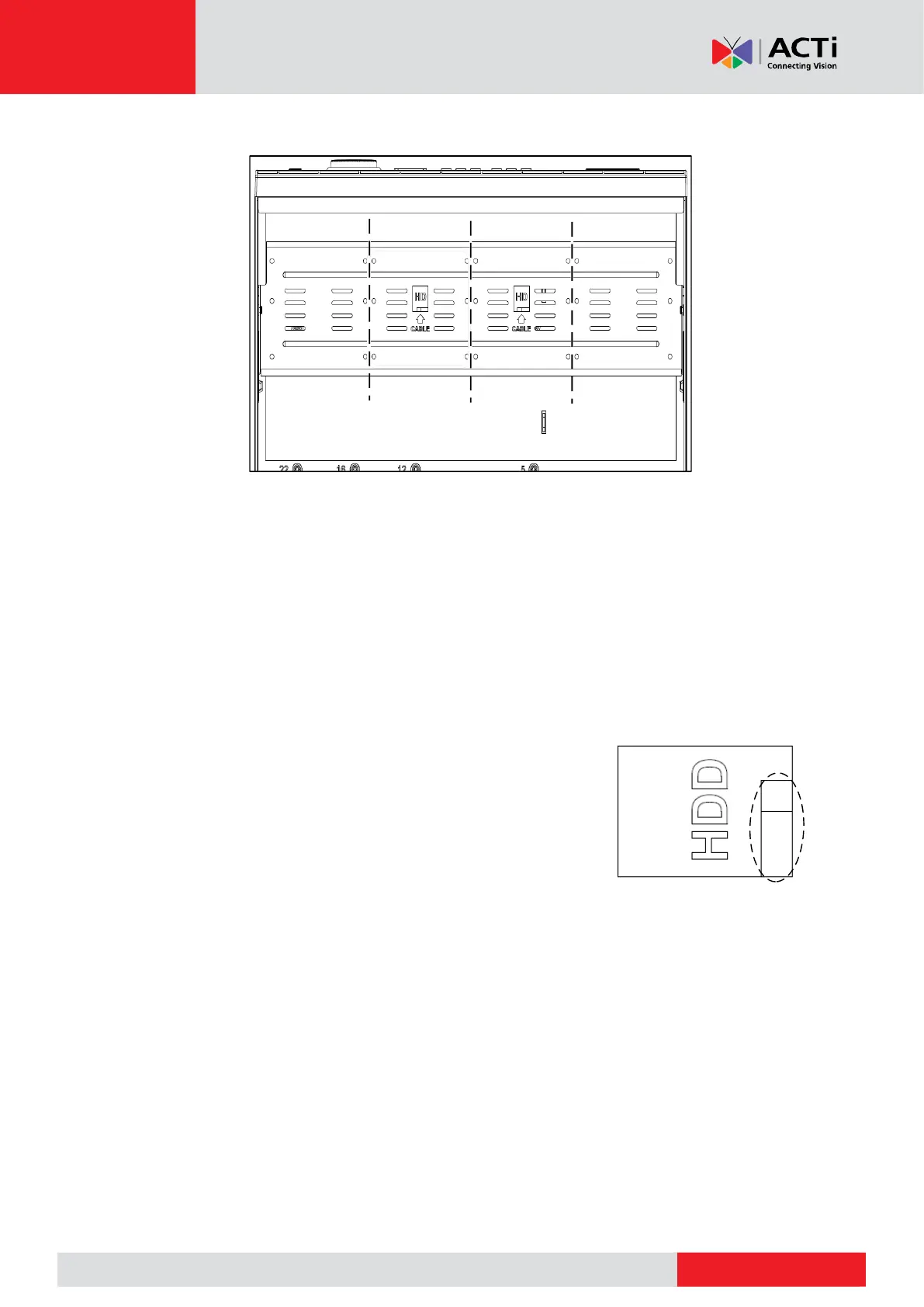

The screw holes are for different uses:
• A: For 3.5” HDD with 4 screw holes.
• A and B: For 3.5” HDD with 6 screw holes.
NOTE:
• The three (3) dotted lines (for illustration only) divide the four sets of screw holes. Do
not install across the lines.
• An 8 HDD device has two (2) mounting plates. Take out the mounting plates, secure
all disks on the mounting plates, and then fix the mounting plates in the device.
The dotted lines indicate the cable connection side (may vary
with device). Make sure the disk faces the correct side for
installation.
Choose an option as appropriate. Use a #1 or #2 screwdriver as
needed. All photos are for illustration purposes only.
A1
A2
A3
A4
A5 A6
