www.acti.com
USER’S MANUAL
11
Installation
Wall Mounting
Before installation, make sure the wall is strong enough to withstand the three times the weight
of the device.

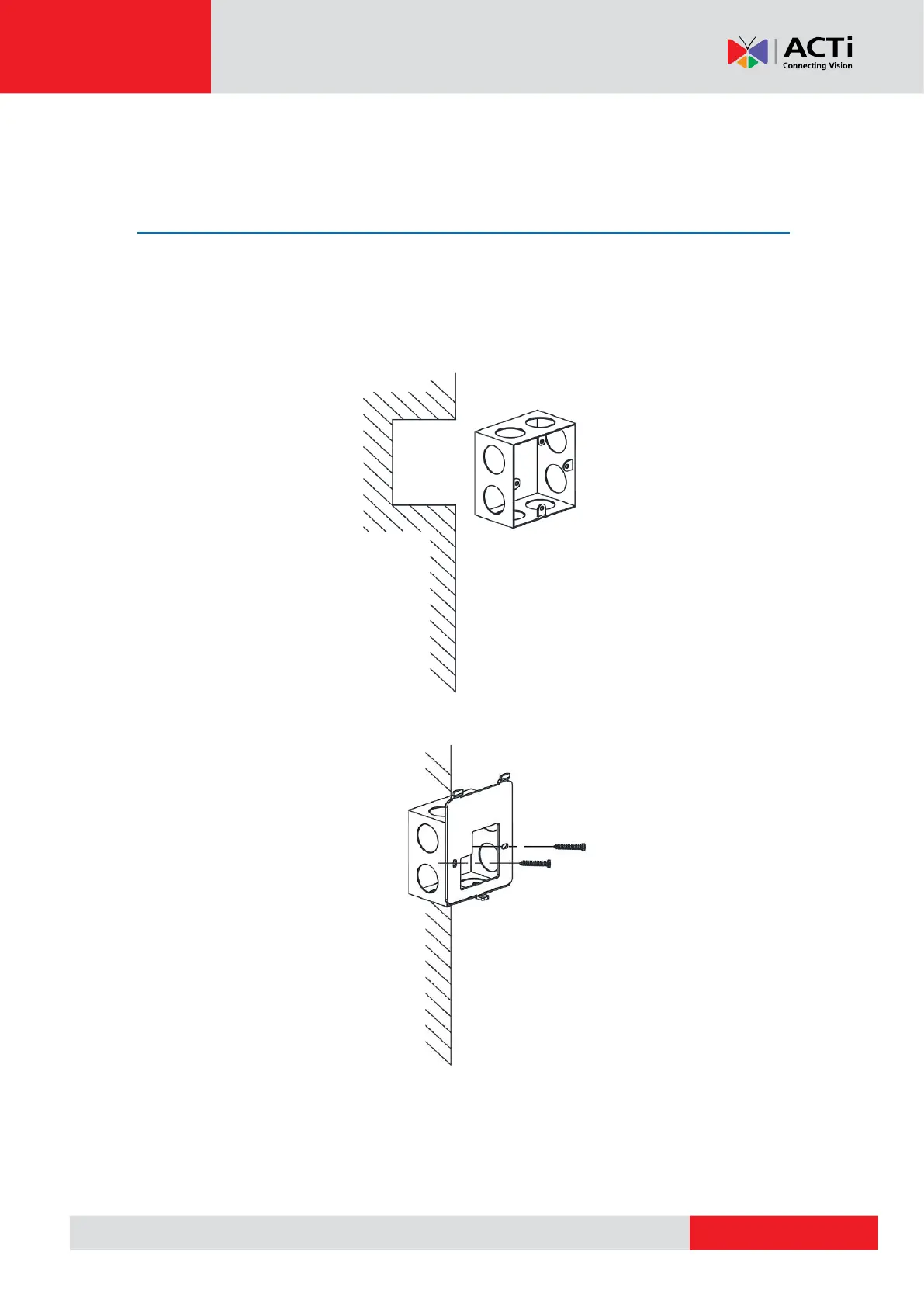

1. Install a type 86 gang box into the wall.
2. Secure the device mounting plate on the gang box using the two (2) supplied screws.
3. Route the cables through the cable hole of the mountingplate and connect the cables with
the connector on the rear panel of the device.
4. Align the device with the mounting plate.
