ARTEX PRODUCTS / ACR ELECTRONICS, INC
DESCRIPTION, OPERATION, INSTALLATION AND MAINTENANCE MANUAL
G406-4 (453-5012)
570-5012 Rev. P Company Confidential 25-62-21 Page 45 of 70
1) Select a suitable location for the ELT mounting tray. See Figure 12 G406-4 ELT Outline and
Dimensions. Refer to these dimensions when determining mounting location.

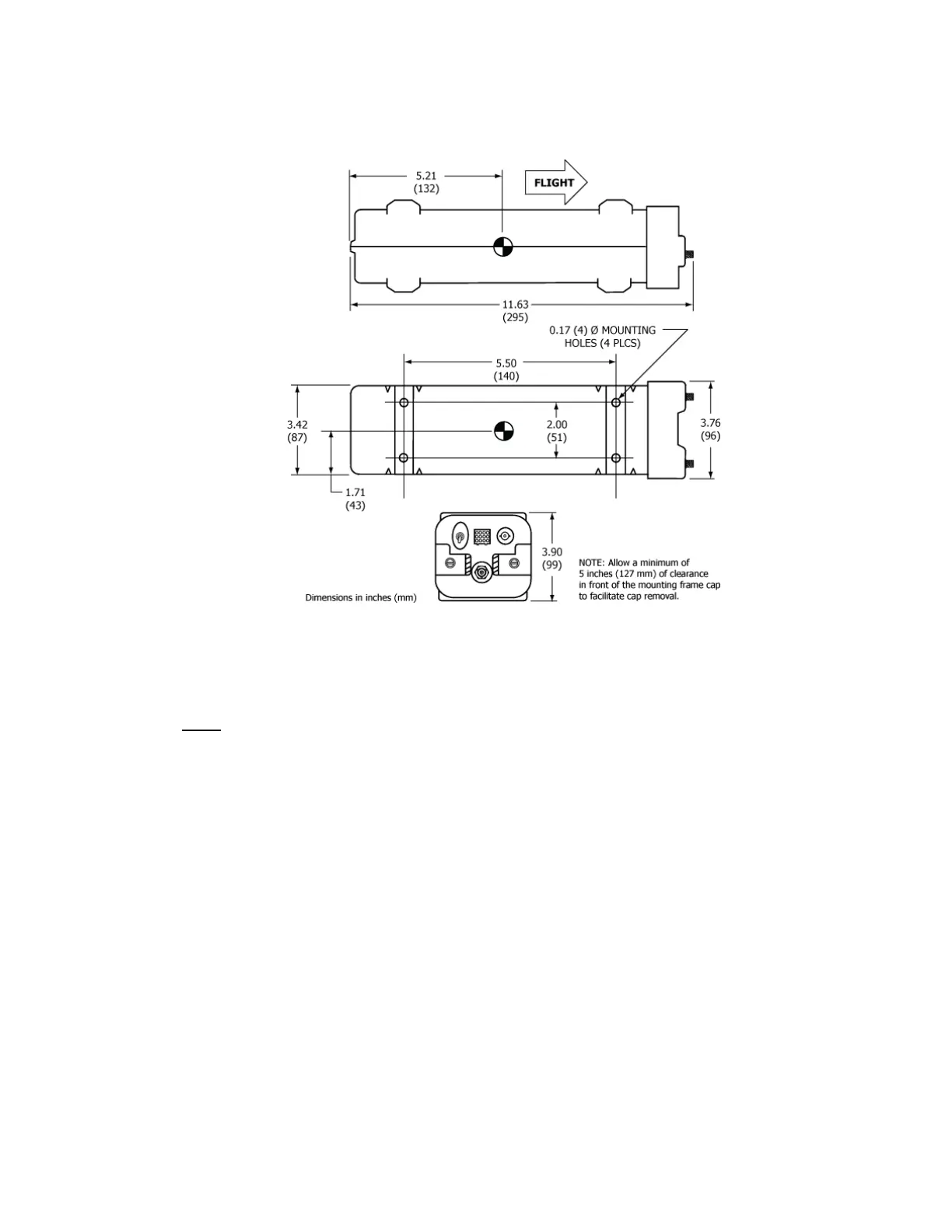

Figure 12 G406-4 ELT Outline and Dimensions
2) Locate the mounting tray such that the ELT mounting frame cap has at least 5 inches (127 mm) of
clearance for installation and removal.
3) Mount the ELT as far aft as practical, but where it can be easily retrieved for maintenance.
NOTE: Statistics show that the tail section of an airplane is likely to be less damaged during
a crash; therefore, providing a good mounting environment for the ELT.
4) Additional installation guidance may be found in AC 43.13-2, Chapter 2, Paragraph 28, which
specifically addresses ELT installations.
