ARTEX PRODUCTS / ACR ELECTRONICS, INC
DESCRIPTION, OPERATION, INSTALLATION AND MAINTENANCE MANUAL
G406-4 (453-5012)
570-5012 Rev. P Company Confidential 25-62-21 Page 39 of 70
REMOVAL
TASK 25-62-21-010-801
1. ELT
SUBTASK 25-62-21-010-001
A. ELT Removal
1) See Figure 10 ELT Removal Sequence.

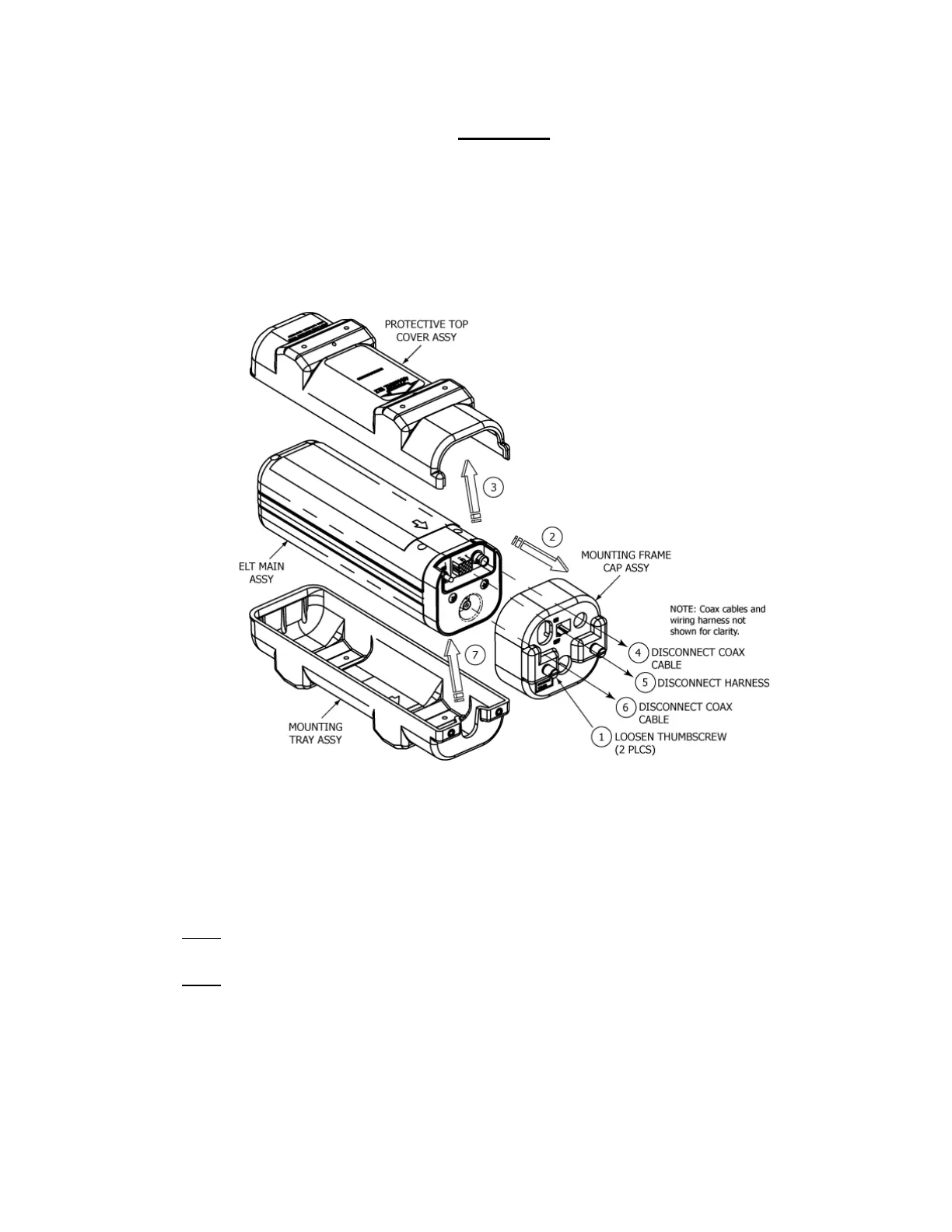

Figure 10 ELT Removal Sequence
2) Loosen the mounting frame cap thumbscrews.
3) Slide the mounting frame cap back away from the ELT.
4) Lift the protective top cover up, away from the ELT and set it aside.
5) Disconnect the two antenna coax cables from the ELT.
6) Disconnect the harness receptacle from the ELT, if necessary.
NOTE: The receptacle may disconnect when the mounting frame cap is pulled back.
7) Lift the ELT up from the connector end.
NOTE: Careful use of a flat blade screwdriver as a lever will make this step easier.
8) Slide the ELT up and out, away from the mounting tray.
