ARTEX PRODUCTS / ACR ELECTRONICS, INC
DESCRIPTION, OPERATION, INSTALLATION AND MAINTENANCE MANUAL
G406-4 (453-5012)
570-5012 Rev. P Company Confidential 25-62-21 Page 18 of 70
SUBTASK 25-62-21-870-002
B. Components
1) The G406-4 ELT main assembly is housed in a high impact, fire resistant, polycarbonate plastic case,
which is enclosed in a protective mounting frame assembly made of similar material. See Figure 1
G406-4 ELT and Mounting Frame Assembly.
NOTE: The ELT main assembly and its mounting frame assembly are capable of
withstanding extremely harsh environments and have been subjected to the rigorous
environmental testing required by COSPAS-SARSAT for certification.

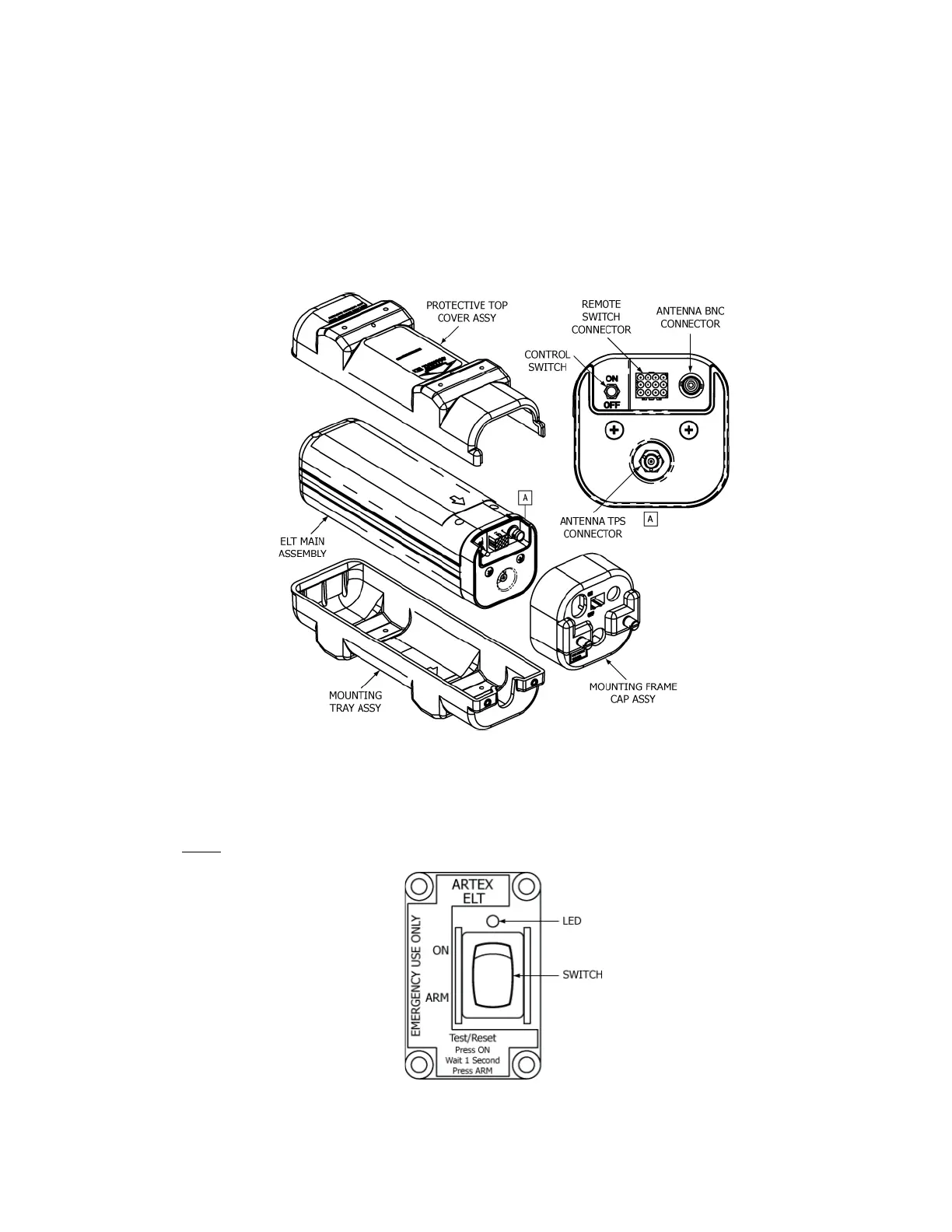

Figure 1 G406-4 ELT and Mounting Frame Assembly
2) The cockpit-mounted remote switch assembly is comprised of an ELT status LED and control switch and
allows an operator to manually turn the ELT on (i.e., activate) for testing and reset (i.e., deactivate) the
ELT. See Figure 2 Remote Switch Front View.
NOTE: The ELT CANNOT be disarmed or disabled from the cockpit. Cockpit operation is
limited to deactivating or manually activating the ELT.
Figure 2 Remote Switch Front View
