ARTEX PRODUCTS / ACR ELECTRONICS, INC.
DESCRIPTION, OPERATION, INSTALLATION AND MAINTENANCE MANUAL
ELT 1000 (P/N: A3-06-2749-1)
Y1-03-0259 Rev. AC Company Confidential 25-62-33 Page 18 of 65
B. System Components
1) The ARTEX ELT 1000 housing assembly and tray are made of high impact, fire resistant, polycarbonate-
polyester plastic (see Figure 1).

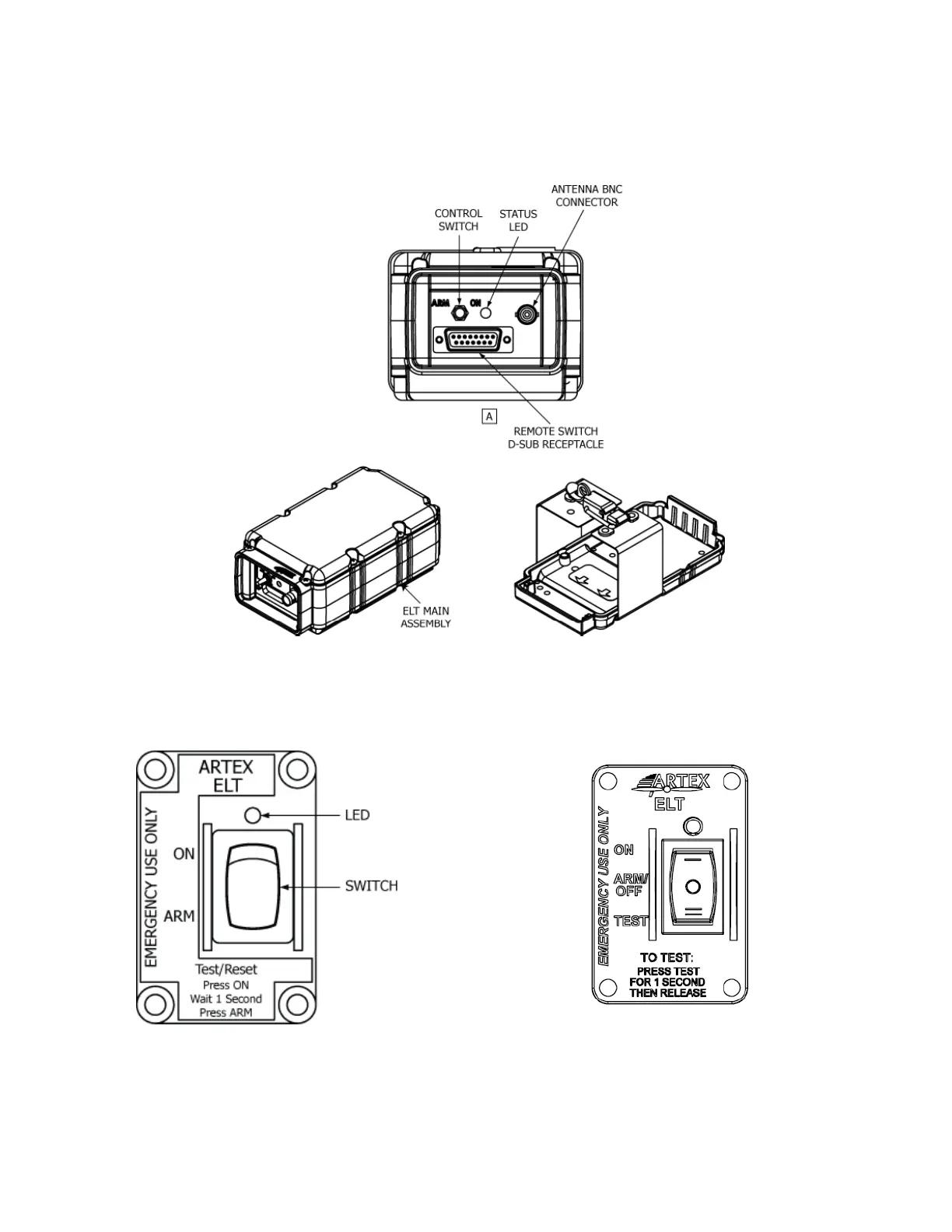

Figure 1 ARTEX ELT 1000 Beacon and Mounting Tray
2) The cockpit-mounted remote switch assembly includes a status LED and control switch. The switch allows
the operator to manually activate and reset the ELT for testing (see Figure 2).
5 WIRE 2 WIRE
Figure 2 Remote Switch Front View
3) The buzzer provides an audible alert when the ELT is active (see Figure 3).
