ARTEX PRODUCTS / ACR ELECTRONICS, INC
DESCRIPTION, OPERATION, INSTALLATION AND MAINTENANCE MANUAL
C406-2 (453-5000), C406-2HM (453-5001)
570-5000 Rev. V Company Confidential 25-62-11 Page 64 of 66
TASK 25-62-11-990-804
4. Detailed Parts List

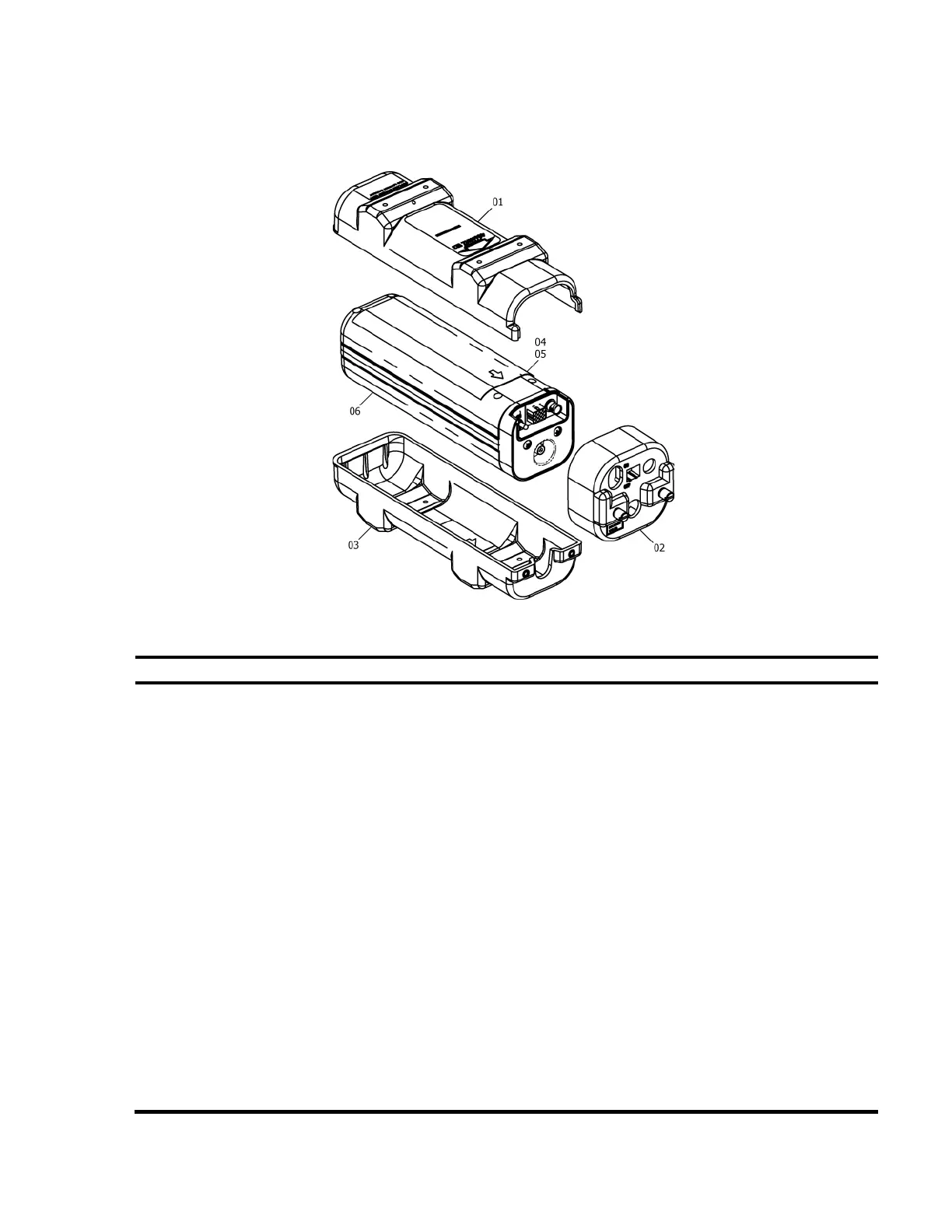

Figure 29 C406-2 Series ELT Main Assembly and Installation
FIG #
ITEM
PART #
1234 NOMENCLATURE
UPA
28
01
452-3052
Protective Top Cover Assembly
1
02
452-5052
Mounting Frame Cap Assembly
1
03
452-5050
Mounting Tray Assembly
1
ATTACHING PARTS
–
201-0810
Screw, PHP 8-32 x 5/8” SS
4
–
246-0008
Washer, Flat 1/2” SS #8
4
–
247-0800
Washer, Lock Internal Tooth SS #8
4
–
241-0832
Nut, 8-32 x 1/4” Hex SS
4
***
04
453-5000
C406-2 Main Assembly
1
05
453-5001
C406-2HM Main Assembly
1
***
–
591-0999
. Label, Hex Code
1
–
591-0429
. Label, Country Code
1
***
06
452-0133
. 406 Lithium Battery Pack
1
ATTACHING PARTS
–
217-0606
. Screw, with O-Ring
4
***
