ARTEX PRODUCTS / ACR ELECTRONICS, INC
DESCRIPTION, OPERATION, INSTALLATION AND MAINTENANCE MANUAL
C406-2 (453-5000), C406-2HM (453-5001)
570-5000 Rev. V Company Confidential 25-62-11 Page 19 of 66

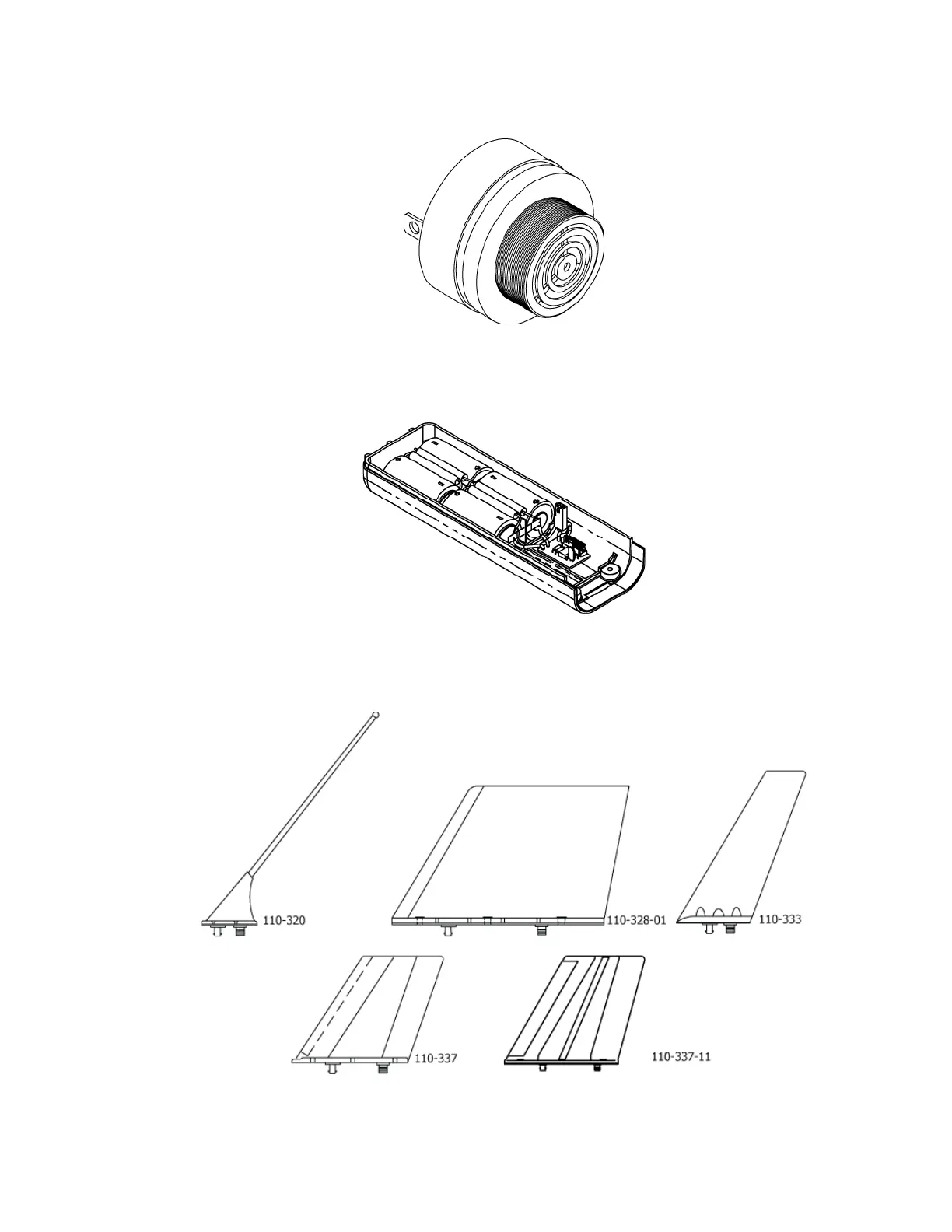

3) The buzzer (i.e., horn) provides an audible alert when the ELT is active. See Figure 4.
Figure 4 Buzzer
4) The battery pack for the C406-2 Series ELT consists of four “D” size lithium manganese dioxide cells
connected in series. To prevent the cells from being charged, diodes are connected across each cell
and fuses are connected to the output. See Figure 5.
Figure 5 Battery Pack Assembly
5) Five dual-input antennas are approved for use with the C406-2 Series ELT. Selection of the proper
antenna is dependent upon end use, aircraft configuration and speed, and other factors. See Figure
6.
Figure 6 Antennas
