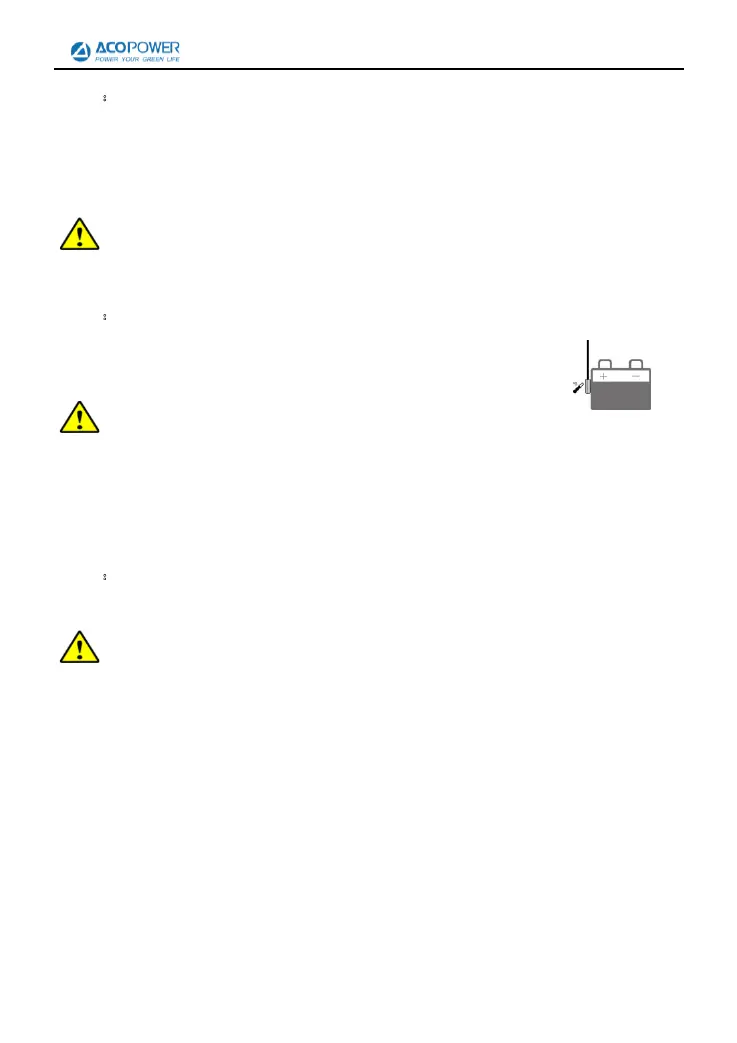

www.acopower.com
15
Step 4：Grounding
Tracer AN series is a common-negative controller, if any of one negative is grounded, all the
negative terminals of PV, Battery will be grounded simultaneously. However, according to the
practical application, all the negative terminals of PV array, battery and load can also be
ungrounded, but the grounding terminal on its shell must be grounded, which may effectively
shield the electromagnetic interference from the outside, and prevent some electric shock to
human body due to the electrification of the shell.
CAUTION: For common-negative system, such as motorhome, it is recommended to
use a common-negative controller; but if in the common-negative system, some
common-positive equipment are used, and the positive electrode is grounded, the controller
may be damaged.
Step 5：
Connect accessories
Connect the remote temperature sensor cable (Model:RTS300R47K3.81A)
Connect the remote temperature sensor cable to the interface ᬡand place
the other end close to the battery.
CAUTION: If the remote temperature sensor is not connected to the controller,, the
default setting for battery charging or discharging temperature is 25 °C without temperature
compensation.
Connect Remote Battery Voltage Sensor (Model:RVBS300B3.81)
Connect the remote battery voltage sensor cable to the interface ᬤand connect the other end
to the battery terminals.
Connect the accessories for RS485 communication, refer to the accessories list.
Step 6：
Powered on the controller
Turn on the battery fuse to power on the controller, then check the LCD is OFF or the fault
indictor is ON when the controller is normal.
CAUTION: If the controller is not operating properly or the battery indicator on the
controller shows an abnormality, please refer to 4.2 “Troubleshooting”.
