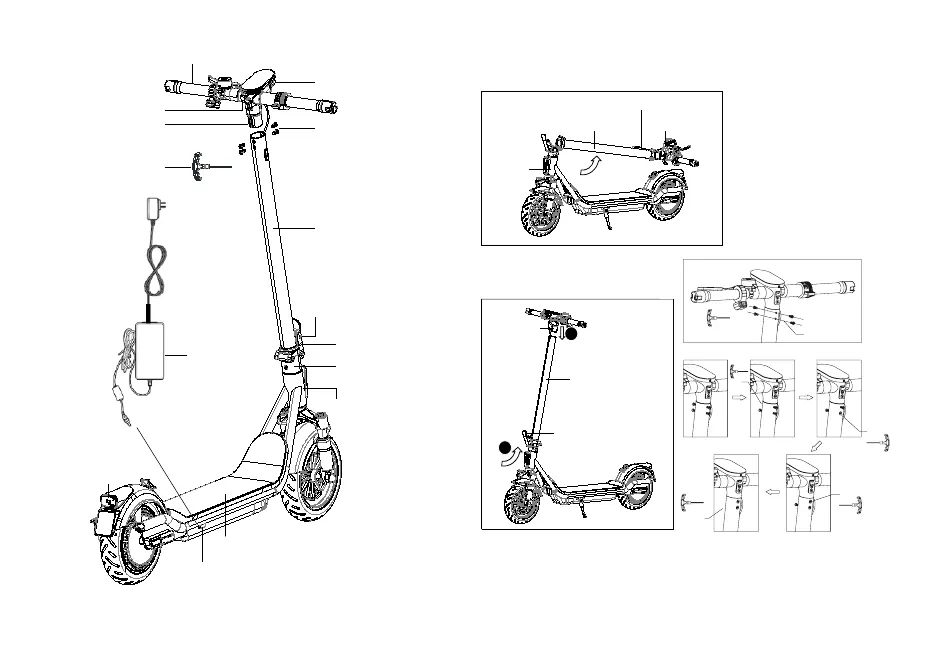

EN-2

Battery charger

Charge port

Handlebar

Fixation hook

Connector

3mm hex wrench

Frontlight

M5 hexagon screws

Front tube

Anti-release button

Folding lever

Folding mechanism

Head tube

Antiskid rubber pad

Rear light

III. Assembling

Head

tube

Front tube

Handlebar

Connector

 Lift up the front tube

along with connector

and handlebar, level

with head tube.

3

2

Connector

Front tube

Folding lever

90°

2

3

4

1

Hex wrench

 Lock the folding lever.

 Insert the connector to the

front tube.

 Lock the M5 screws on both sides

of the pipe with the hex key.
