Installation Manual I Installation

MP4053-2006

Mounting vent Extensions On Two Steamers on a Double

Stack Stand.

DO NOT connect Drain or Vent lines on multiple

appliances. Each appliance should have its own dedicated

drain and vent.

Each steamer’s vent must be extended individually. Tying mul-

tiple vents together will result in the steamers being unable to

regulate heat.

For the both steamers, follow the instructions as provided above

in Extension Sloping Upward.

The lower steamer’s vent must exit above the top of the upper

steamer (FIGURE 3.L).

When designing the extension to slope downwards, whether us-

ing rigid or ﬂexible hosing, pipe hangers or pipe supports should

be used every six feet to prevent long runs from sagging. The

end of the hose/pipe should not be submerged to prevent steam

backups (FIGURE 3.M).

Extension Sloping Downwards (FIGURE 3.K)

1. Use nominal ¾” or larger inside diameter (ID) to prevent

ﬂow restrictions.

2. Pipe should slope downwards from the steamer vent

to a ﬂoor drain to allow water condensing in it to run

unimpeded into the ﬂoor drain.

3. For downward sloping extension to a ﬂoor drain ONLY

– ¾ ID or larger reinforced silicone hose (auto radiator

hose) may be used. The hose end must be open and not

submerged. Avoid any low spots that will cause puddles of

water and increase of back pressure.

4. Total length of extended vent piping should not exceed 15

feet.

3/4” Diameter

brass pipe (both

ends threaded) or

reinforced silicone

hose.

Avoid low spots.

Total length should

not exceed 15 feet.

6” - 12” Long - 3/4” Diameter

brass pipe (both ends threaded

male)

Rotate factory

elbow to point

downwards

45 ° Elbow = 3/4”

Diameter

brass pipe (both ends

female)

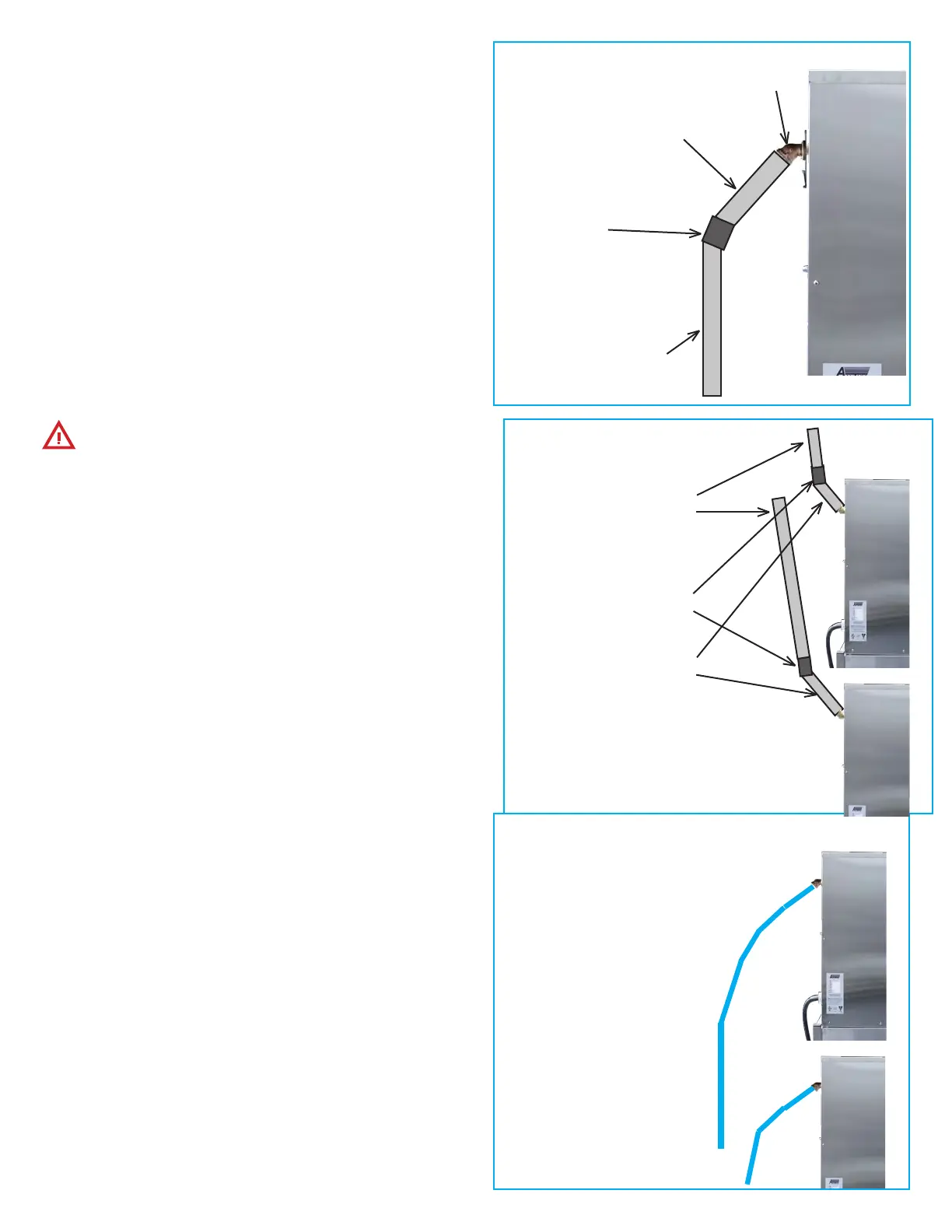

FIGURE 3.K  USING

RIGID PIPING

FIGURE 3.M

Two ¾ ID or larger reinforced

silicone hose (auto radiator

hose) may be used, allowing

a 1/4 Total Length MUST NOT

exceed 15 feet. Hoses must

not be joined in any way

No loops in hose - preventing

condensation

Ends of hose must be open

to air and not submerged

45 ° Elbow = 3/4” Diameter

brass pipe (both ends female)

18” - 36” Long = 3/4” Diam-

eter brass pipe (both ends

threaded)

6” - 10” Long - 3/4” Diameter

brass pipe (both ends threaded

male)

FIGURE 3.L
