9
For models FF6WBI, FF6LWBI, FF7LWBI, FF7LBLKBI, SCR600GLBI and
SCR600BGLBI:

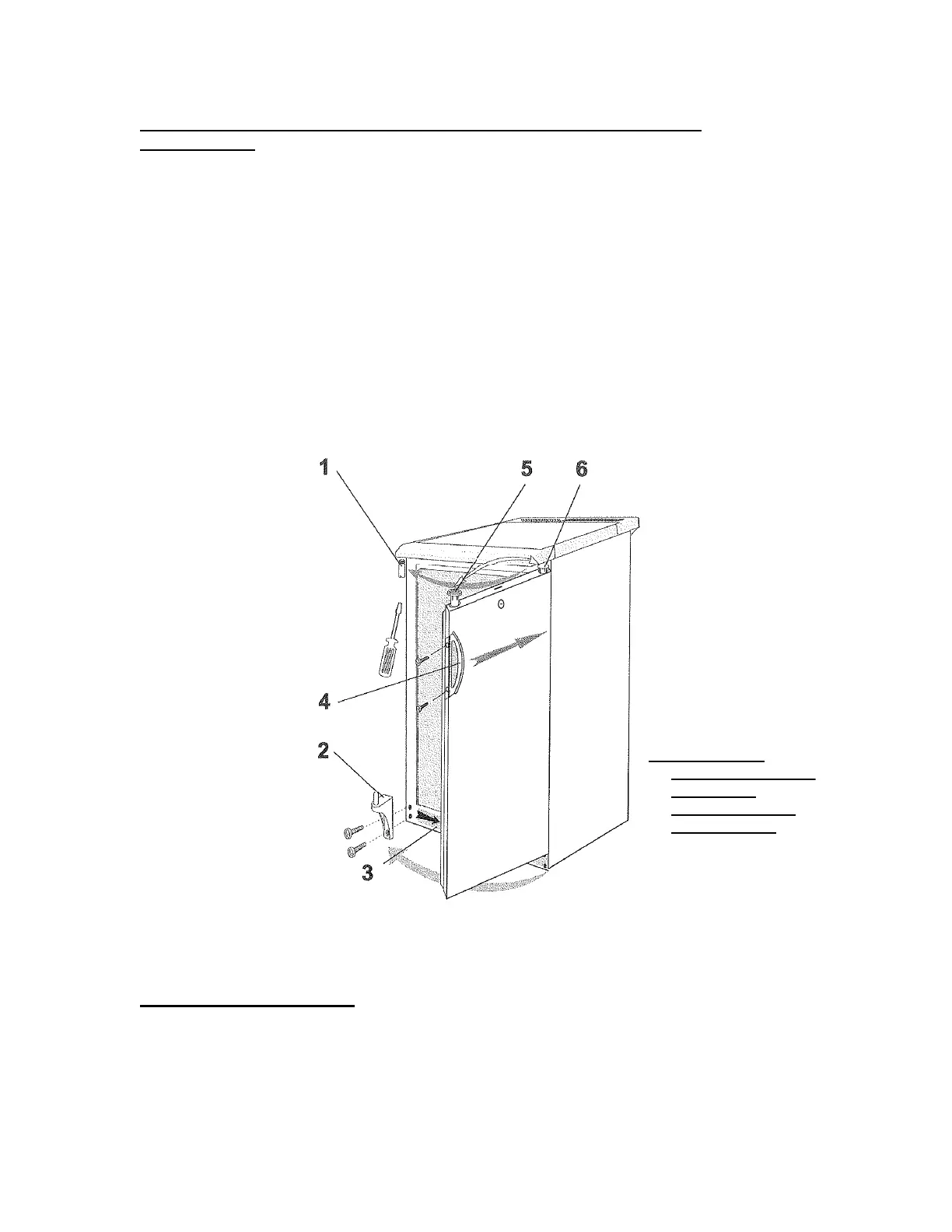

NOTES: See illustration below.
All of the parts that are removed must be kept for the reinstallation of the door.
1. Unscrew the lower hinge and take off the door.
2. Push the kick plate to the right in the new position.
3. Undo the upper hinge fastener and fix it to the opposite side of the housing, where
you have already removed and replaced the fastener with the hole to the opposite
side.
4. Put the door on the upper hinge fastener.
5. Fix the lower hinge in the new position.
6. Unscrew the handle and place it on the opposite side.
7. Some screws are covered with caps. Take off these caps before undoing the screws.
8. Check the door gasket. It should not be creased and should seal well.
1. Upper hinge fastener 4. Handle
2. Lower hinge 5. Door hinge fixture
3. Kick plate 6. Door hinge fixture plug
Door Handle Installation:
The door has two screw holes on each side, allowing you to install a handle (included).
To do so, align the handle with the screw holes on the side you prefer. Fix the handle in
place with the included screws, then cover the screw heads with the handle seal
(included).
Models FF6WBI,
FF6LWBI, FF7WLBI,
FF7LBLKBI,
SCR600GLBI and
SCR600BGLBI
