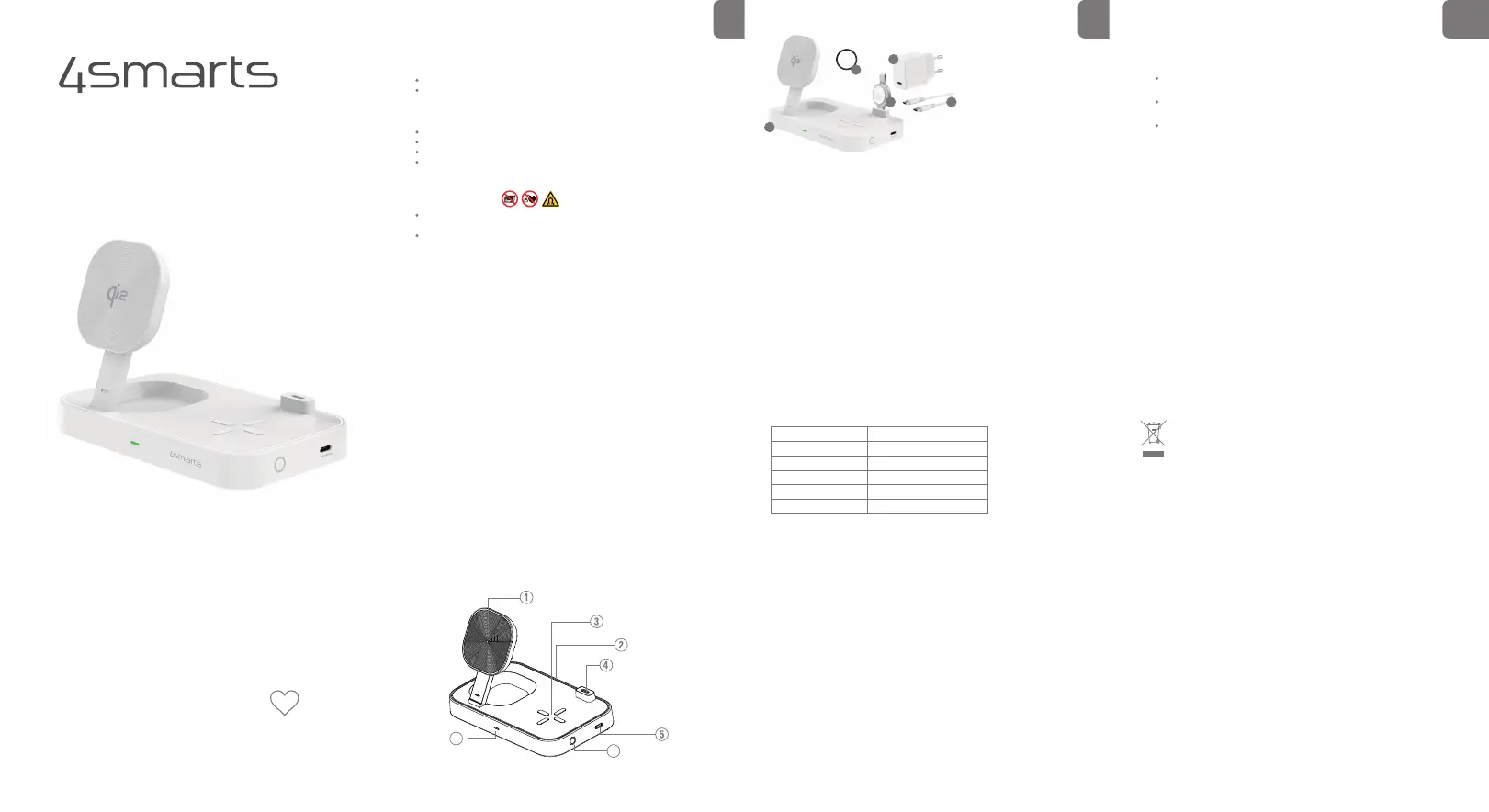

Qi2 CHARGING STATION

TRIDENT

6 Care and Maintenance

Only use a soft, dry cloth to clean the device.

7 Warranty

The 4smarts GmbH assumes no liability and provides no warranty for damage

resulting from improper use of the product or from failure to observe the

operating instructions and/or safety notes.

9 Service and Support

If the product is defective or in case of problems during installation,

please consult your dealer or the 4smarts product consulting via:

https://www.4smarts.com/contact

Electric and electronic devices as well as batteries must not be

disposed of with household waste. Consumers are obliged by law to

return electric and electronic devices as well as batteries at the end of

their service lives to public collecting points set up for this purpose or

point of sale.

8 Disposal Notification

10 Attestation of Conformity

Hereby, 4smarts GmbH, declares that this device is in compliance with the

essential requirements and other relevant provisions of Directive 2014/53/EU.

The declaration of conformity may be consulted at www.4smarts.com.

IN USB-C: AC 12V/2.5A (30W max.)

OUT USB-C1/C2: DC 5V/1A (5W max.)

OUT Wireless Phone: 5W/7.5W/10W/15W

OUT Wireless TWS: 5W

Frequency Range: 105-360 kHz

Material: PC+Aluminium alloy

Supports: Apple StandBy Function, MagSafe

Protocols: Magnetic Power Profile (MPP), Extended Power Profile (EPP),

Baseline Power Profile ( BPP), Samsung Proprietary Power Delivery Extension (PPDE)

Foldable compact design

Integrated overheating protection

Optimised 30W power supply with 1.5m USB-C cable included

UltiMag ring included for non-MagSafe / Qi2 devices

Please note: For the upright charging function, the smartphone must be

Qi2 or MagSafe-enabled (check the device's manufacturer page for information)

or use our UltiMag Ring to use this function.

2 Technical Data

3 Getting Started

Do not drop the product or subject it to heavy shocks.

Have the product repaired by a qualified technician only.

1.1 General precautions

1 Safety Instructions

4 Function Notes

5 Troubleshooting

1.2 Precautions for electrical products

Protect the device from dirt, moisture, overheating, extreme temperatures.

Do not open the device and do not continue to operate it if damaged.

Never use force when plugging in the device or when using adapters.

Do not operate the device outside its performance limits specified in the

technical data.

1. Connect the USB-C cable supplied with the 30-watt charger to the USB-C input

(marked 2) on a 100-240V power source. After connecting, the blue LED lights up and

goes out automatically after 15 seconds. To keep the LED lit for longer, double-click on

the LED switch. When the indicator goes out, check the connection and renew it if

necessary.

2. Place your device with integrated wireless charging function in the correct position

on the charger. The indicator (marked 7) lights up green as soon as charging starts.

You can switch the LED indicator on or off manually by clicking 2x on the touch switch

(marked 6).

Service Hotline

Monday - Friday: 9 - 17h

+ 49 (0)821 20708444

E-Mail: customer-service@4smarts.com

How to use your wireless charging station?

Charging your wireless smartphone

1. Place your compatible smartphone on Charging Area (marked as 1).

2. The device will automatically dock thanks to the integrated magnetic rings.

3. Once docked, the LED function indicator (marked 7) for Charging Area will light up

in green, indicating that the charging process has started.

Charging your TWS headset

1. Place your wireless charging case on Charging Area (marked as 3).

2. The LED indicator on the wireless charging case lights up briefly to indicate that

the charging process has started.

Charging your smartwatch

1. Connect your smartwatch charger to one of the two USB-C ports available.

(marked as 4 or 5)

2. Place your smartwatch on the designated holder.

Note: The charging areas operate independently, allowing you to charge your devices

as needed.

5.1 My device does not charge via Wireless charge

Check if the smartphone you are using is compatible for fast wireless

charging. If possible, also test it with another wireless charger.

If necessary, remove the protection cover or metal sticker from the back of

your device.

Check to see if another device that supports wireless charging is not

charging. This will help determine if there is a defect or compatibility problem.

5.2 Charging is too slow

To ensure successful charging, please ensure that the distance between the

wireless charger and the charging device is less than or equal to 5mm. If the

LED light is red, please check for foreign objects and remove them.

EN EN EN

for choosing a quality product from 4smarts

Thank You

Included in the set: If you have purchased the [Trident] in a complete set, the

[addional MFi Apple Watch Fast Charger] is already included in your packaging.

Follow the instructions in section [4] to connect it.

As an optional accessory: If you did not receive the [additional MFi Apple Watch

Fast Charger] in the set, you can purchase it separately as an optional accessory.

After purchase, follow the same instructions in section [4] to use it.

Power supply

Standby

Charging process

End of charging

Error message

LED charging area

Brief illumination blue

Off

Lights up green

Flashes red

LED function indicator

Included in the scope of delivery

8.Trident

9.30W Charger

10.1.5M USB-C cable

11.UltiMag Ring

12.MFi Fast Charger

Mobile phone charging postion

USB-C Input

USB-C Output

Touch switch

Indicator

TWS charging position

People with pacemakers should keep away from the magnets. The magnets can

negatively affect the function of the pacemaker.

Do not place any bank or similar cards with magnetic strips or magnetically

sensitive objects on the product. The data on the cards could be damaged or

completely deleted.

1.3 Warning-magnets
