Description

2.1

14

2.1 Description

EasyGate consites of GSM (UMTS) gateway in white plastic cover, removable antenna

and cables for connecting to phone set and PC

2N

®

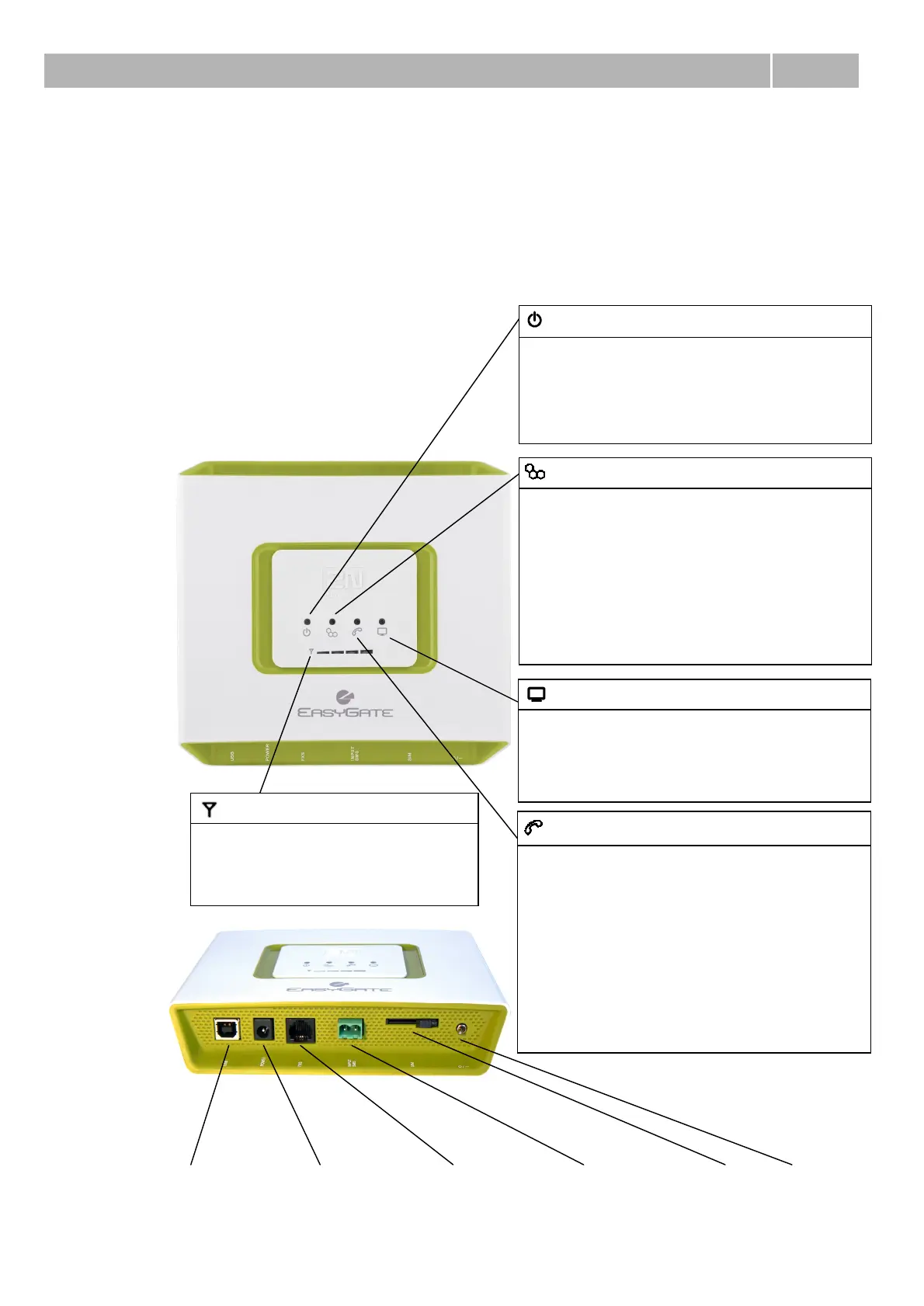

EasyGate ’s status is indicated by LED diodes on its front side. All possible states

are described in the following figure.

USB

(USB 2.0)

Power supply

connector

(DC Jack 2.1 mm,

internal contact +)

Telephone

line

(RJ 12, 6/2)

SMS connector

(SMS sending input)

SIM Switch

(ON/OFF)

Figure 2.2

EasyGate

Connectors

Figure 2.1

EasyGate LED

indicators

No light Standby

Flashes quickly line off-hook or ringing

Lights yellow call FXS – GSM (UMTS)

Fax models only:

Flashes 2x then pause

Fax or modem connection in

progress; after power on

signalizes need of FW upgrade

Flashes 3x then pause

fax or modem connection in

progress

Telephone line

Lights blue device is powered from the grid.

Lights yellow device is powered from the

battery.

Flashes 1x in 2s HW error, contact the

manufacturer

No light Power switched off or HW error

Power supply

Lights blue Registered to GSM (UMTS)

Flashes:

1x in 1s not registered, SIM card inserted

1x in 3s not registered,

SIM card not inserted

4x quickly enter your PIN

8x quickly enter your PUK (use mobile

phone)

Quickly and continuously

All functions are blocked. Your SIM doesn’t

correspond to the operator lock.

Mobile network

Lights green PC connected

Flashes:

Quickly incoming data call (CSD)

1x in 3s data connection (CSD or GPRS)

No light PC not connected

Data – PC connection status

Steady state – signalization of signal

strength

FXS line off hook – signalization of

battery state (battery backup type only)

Signal strength/battery indicator
